Product Details:
Payment & Shipping Terms:
|
| Material: | PVC | Name: | PVC Shrink Film |
|---|---|---|---|
| Feature: | Moisture Proof | Transparency: | Transparent |
| Processing Type: | Blow Molding | Usage: | Shrink Sleeve Labels |
| High Light: | heat activated shrink film,shrink packaging film |
||
40 MIC Transparent Blown PVC Shrink Film For Shrink Sleeve Label
Shrink Wrap, also known as shrink film is a material made up of polymer plastic film. When heat is applied, it shrinks firmly over whatever it is covering. Heat can be applied with a handheld electric or gas heat gun, or the product and the film can be made to pass through a heat tunnel on the conveyor.
1. Specification Of PVC Shrink Film
| Material | PVC |
| Thickness | 30 Micron to 80 Micron |
| Width | 200m - 1000mm |
| Length | up to 3000m |
| Color | Transparent and any color specified by customers |

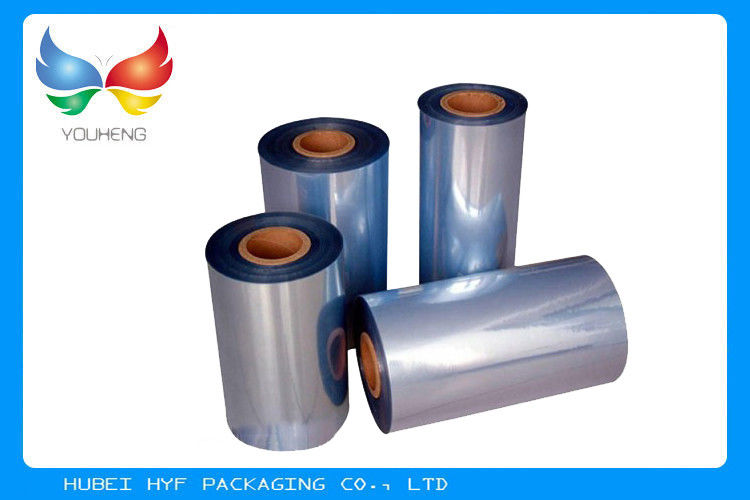

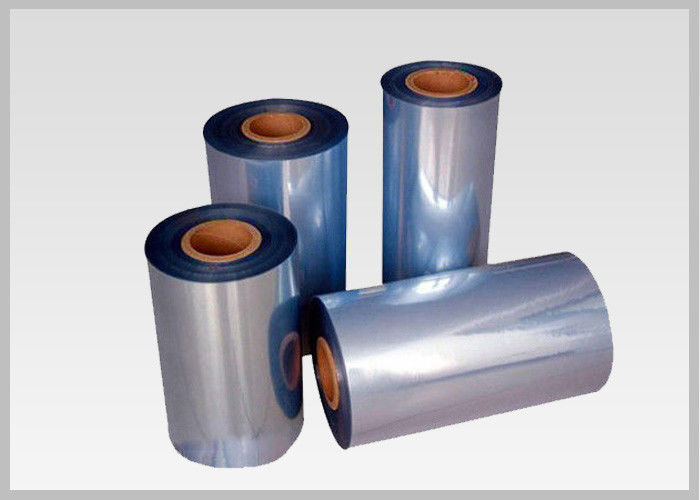

| Packing | Delivered in rolls for automatic machines application or per unit for a manual application |
2. Characteristics of PVC Shrink Films
1) Excellent dimensional stability
2) Excellent printability
3) Dust free
4) Suitable for manual, roll fed and shrink wrap around tables
5) Flexible
3. Technical Date Sheet Of PVC Shrink Film
| NO. | Properties | Unit | Test Standard | Test Method | |
| 1 | Width | mm | (Order Sheet standard)0-3 | --- | |
| 2 | Thickness Max tolerance | % | ±12% | ASTM D 374 | |
| 3 | Tensile Strength | MD | N/mm2 | ≥42 | ASTM D 882 |
| TD | N/mm2 | ≥50 | ASTM D 882 | ||
| 4 | Elongation at Break | MD | % | ≥70 | ASTM D 882 |
| TD | % | ≥50 | ASTM D 882 | ||
| 5 | Shrinkage | MD | % | Order Sheet standard±2.5 | ASTM D 1204 |
| (100°C,8 Seconds) | TD | % | Order Sheet standard ±2.5 | ASTM D 1204 | |
| 6 | Friction Coeffcient | --- | ≤0.5 | ASTM D 1894E | |
4. Usages
1) For shrink-wrap multi-packs packaging.

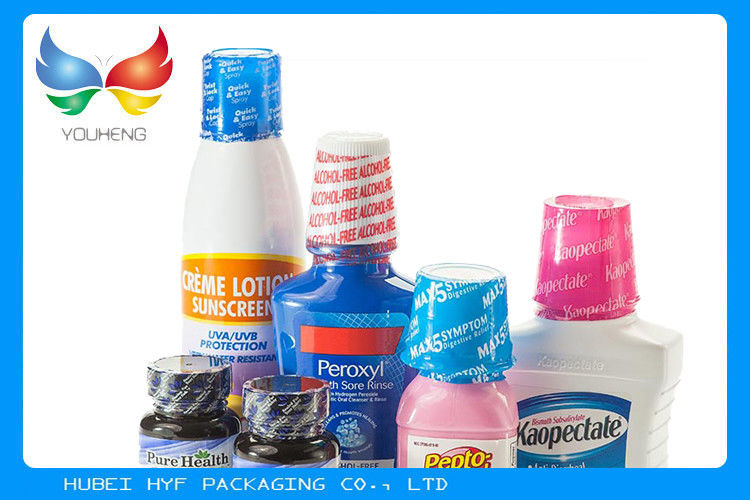

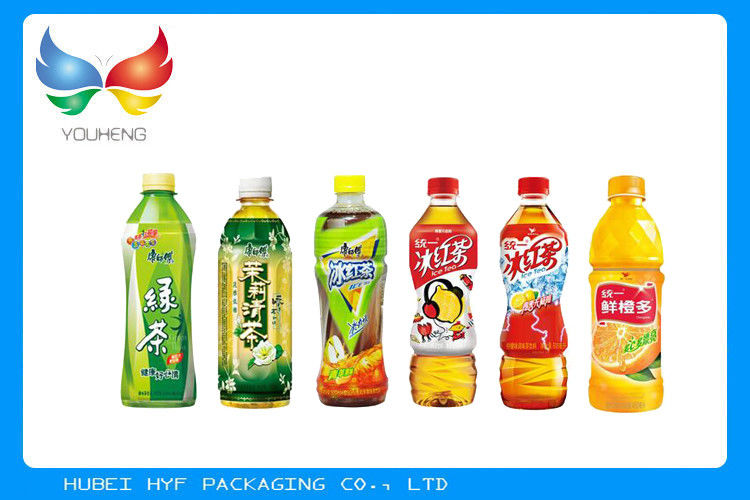

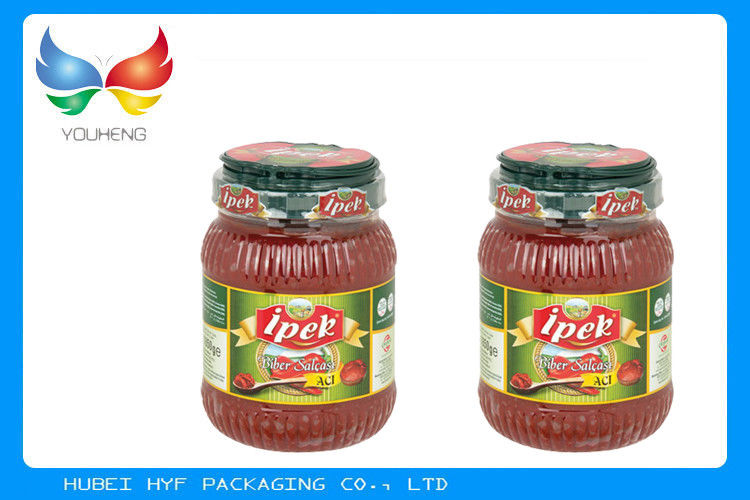

2) For full-body sleeves, shrink sleeves and tamper-evident bands.
3) For wrapping around pressure sensitive labels.
4) CD and DVD packaging
5) PVC Shrink Wrap also works well with automated machines.
5. Advantages
1) Good presentation
2) Low heat required during packing
3) Very good lay-flat properties
4) High clarity
5) Remarkable shrinkage control
6. Drawbacks
Sealing strength, storage issues and sealing by-products are the common pitfalls of PVC shrink wrap. The plasticizer present in PVC shrink wrap gets hardened in cold conditions and softened under hot conditions hence compromising the strength of seal and the plastic. PVC shrink wrap also releases small amounts of hydrogen chloride into the air and carbon deposits onto the sealer. Proper ventilation is required while sealing PVC shrink wrap.
