Product Details:
Payment & Shipping Terms:
|
| Material: | PETG, PET | Thickness: | 30mic-70mic |
|---|---|---|---|
| Width: | 200-1200mm | Processing Type: | Blow Molding |
| Shrinkage Temperature: | 90°C-150°C | Type: | Shrink Label, Shrink Film |
| High Light: | heat activated shrink film,shrink packaging film |
||

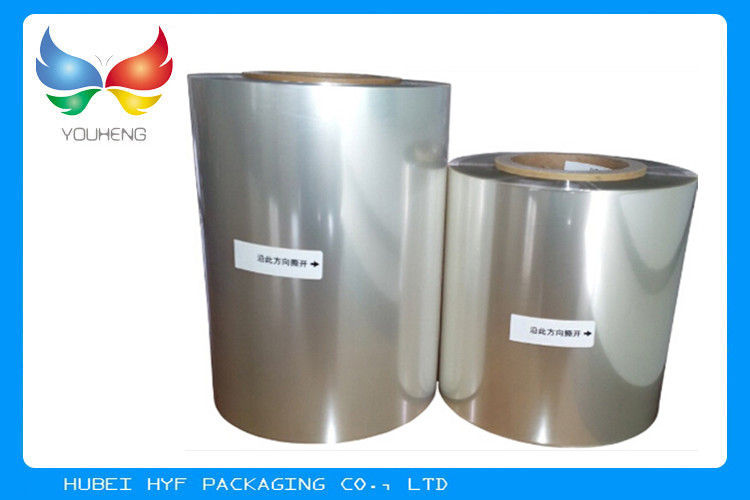

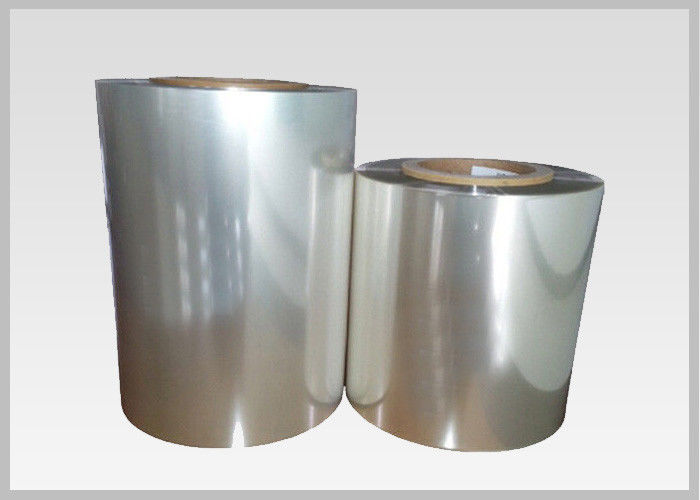

78% PETG High Shrink-sleeve Label Film Optimized For Shrink Sleeve Labels
1. Product Description
PETG is a transparent and heat-shrinkable polyester film from the USA. Its use is intended for the manufacture of thermo-shrinkable wrapping labels.
This technology helps to increase the visual impact of packaging and highlight those with surfaces with reliefs and curves.
Available in different formats and thicknesses, according to requirements.
2. Technical Data Sheet
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | TENSILE STRENGTH | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | ELONGATION | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | Elasticity Modulus | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | Heat Shrinkage | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 70～80 | 78 | |||||
| 6 | Haze | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | Wetting Strength | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
3. Technical Characteristics
1) Good transparency and brightness.
2) High level of thermal shrinkage.
3) Special for high performance lines.
4) Suitable for any environment and climate.
5) Resistant to UV rays, special to protect the stored product and the weather or in its transport.
4. Salient Features of PET Shrink Films
1) Excellent Transparency
2) High Shrinking Capability at lower temperature
3) Resistance to Moisture / Oil
4) Good Mechanical Properties
5) Excellent Electrical Insulation Properties
6) Excellent Printability
7) Besides decorating the bottle/container, it provides glossy look to the product due to excellent quality of the Sleeve compared to conventional type of paper-labels.
It can be used with automatic and manual operation. In case of high-speed operations, to achieve better productivity, these sleeves can also be placed on the object with the help of automatic shrink sleeve applicator machine. In this case, the sleeves can be supplied in continuous length to suit the operations.

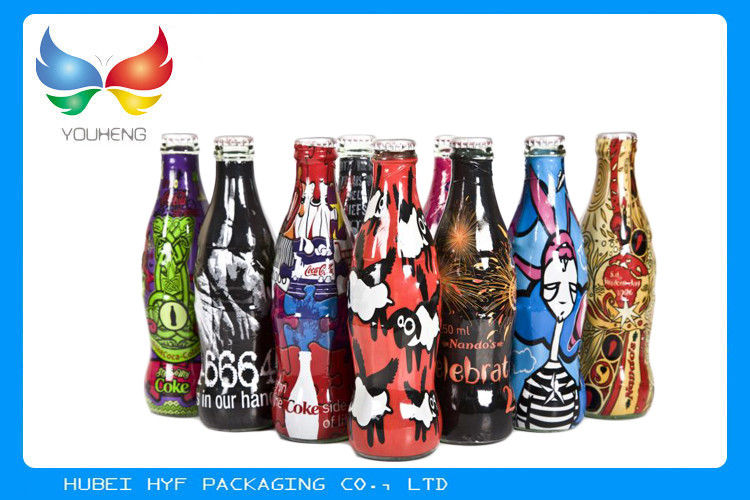

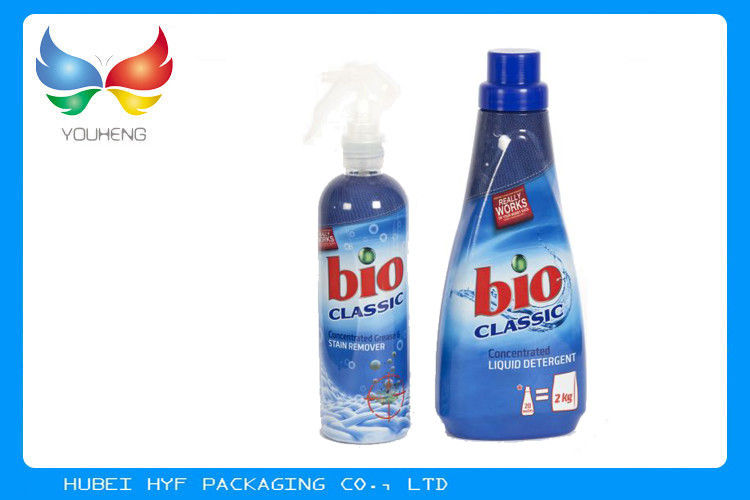

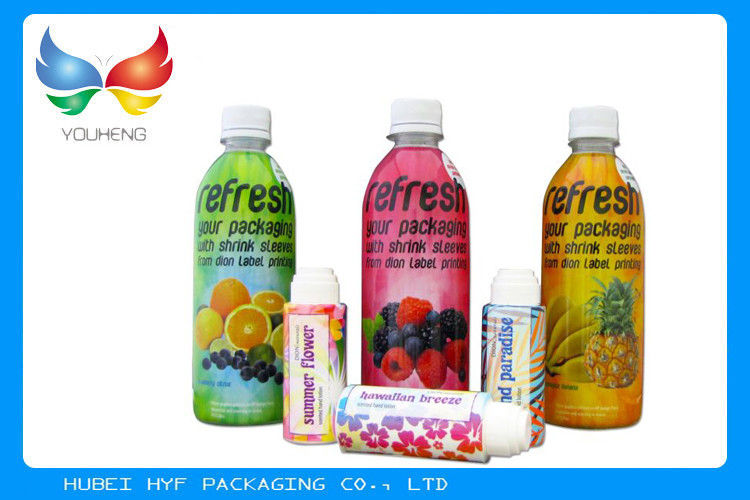

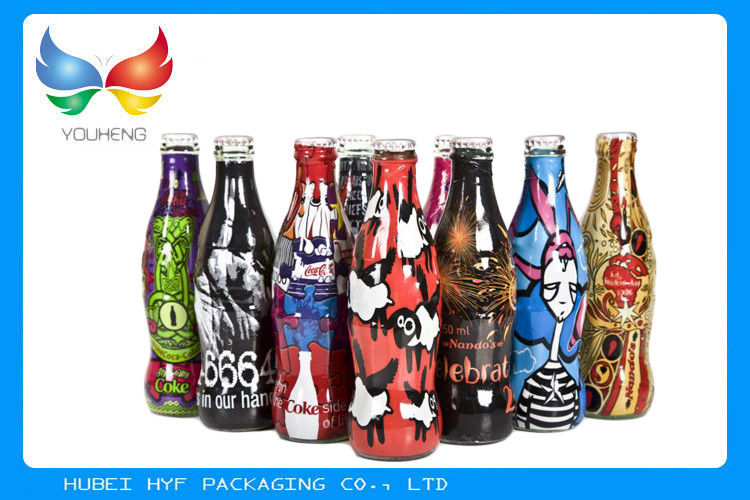

5. Application
6. FAQ
1) Q: Do you accept OEM?
A: Yes, we do.
2) Q: What's your delivery time?
A: It’s according to the quantity of the order. Normally it is between 5 and 20 days.
3) Q: What's your production capacity?
A: About 4000 tons per month.
4) Q: What's your payment term?
A: We accept T/T, L/C, O/A, Western Union, or customized if it is acceptable.
5) Q: Do you provide free sample? And how many days it will take?
A: Samples for testing are available and free. The freight for sample delivery is at receivers's side. But to be refunded by deducting from the right coming order automatically
