Place of Origin:
China
Brand Name:
HYF
Certification:
ISO, SGS, etc.
Model Number:
HYF

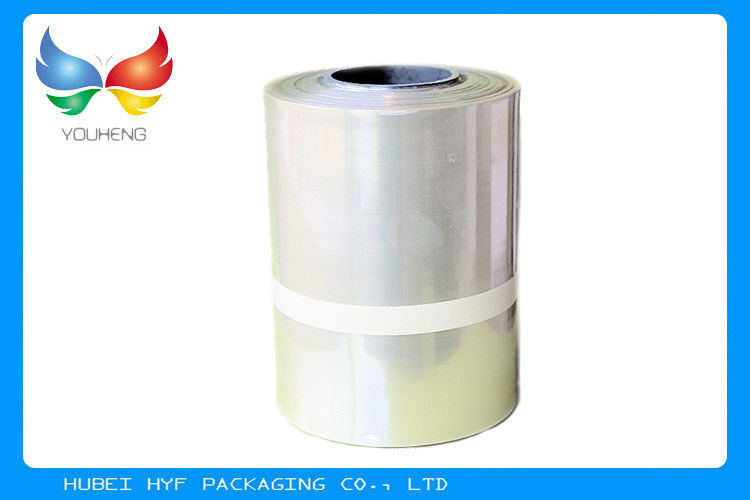

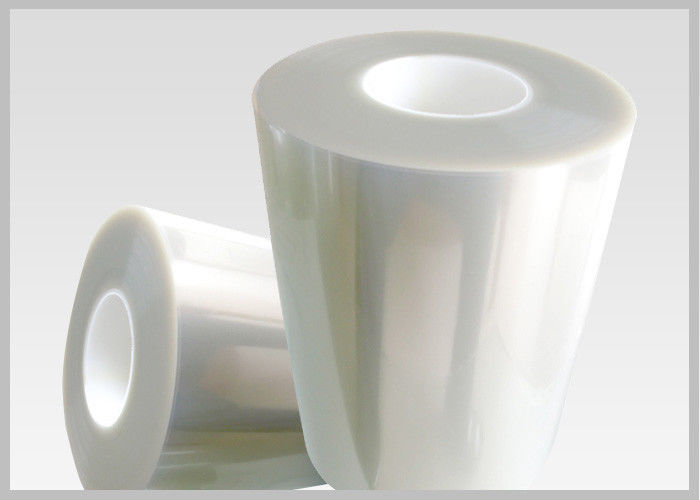

40 Micron Recyclable Clear PETG Shrink Sleeving Label Film For Wine Bottle
While PETG is the most expensive and most heat resistant shrink sleeve material, they are the most scuff resistant, have a higher gloss, and also have a higher shrink percentage up to 75%. Additionally, PETG is pasteurisable, environmentally friendly and can be recycled, an often-sought feature in today's market.
1. Technical Data Sheet
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | TENSILE STRENGTH | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | ELONGATION | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | (Elasticity Modulus) | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | HEAT SHRINKAGE | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 60～78 | 66 | |||||
| 6 | (HAZE) | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | WETTING TENSION | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
2. Applications

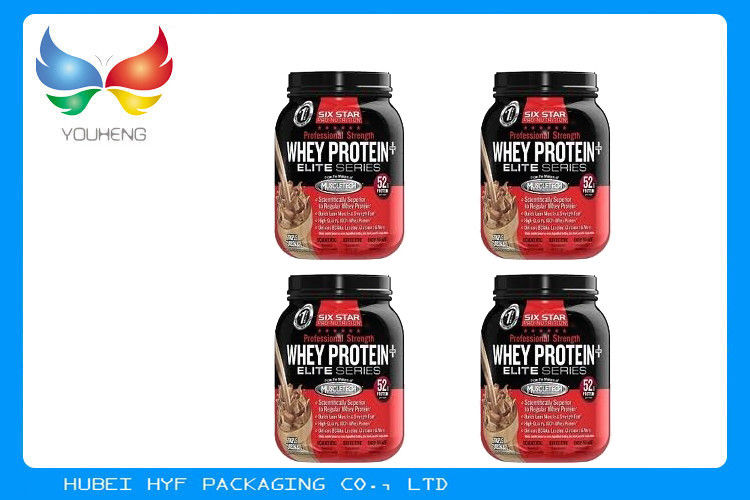

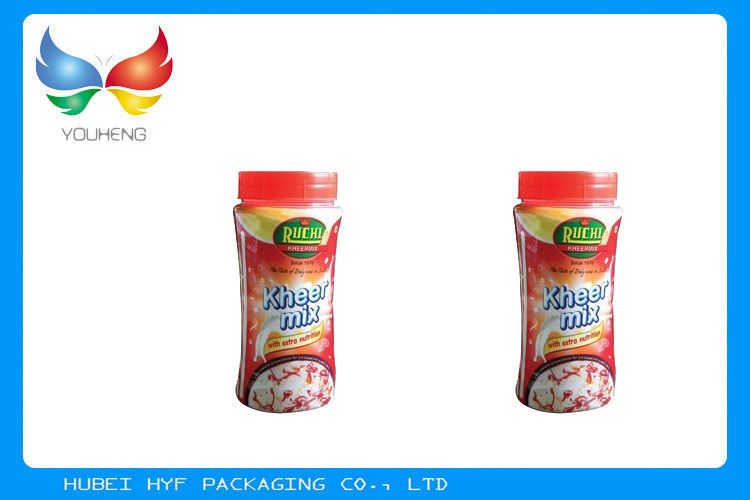

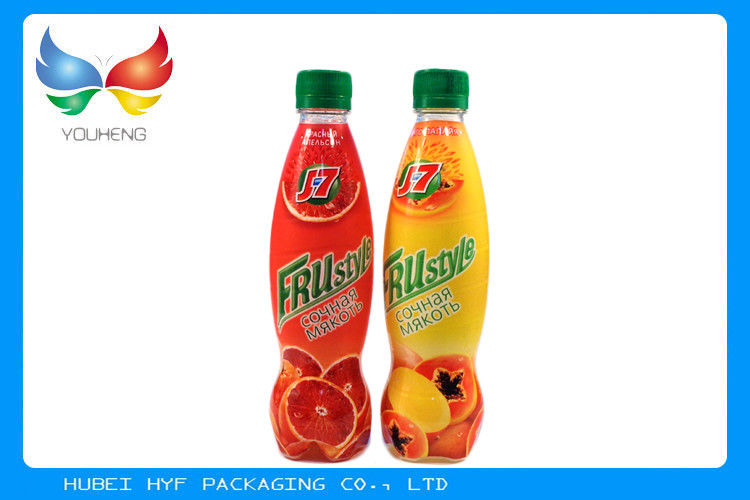

1) Widely for all types of bottles, cups, trays printing
2) Used for making full body sleeves and containers
3. Advantages
PETG is an amorphous plastic resign of the polyster family.Due to its high shrinkage,highest among all shrink sleeve material, PETG is an ideal solution for container shrink film that have complex geometries and require superior printability.Compared to other material, PETG resign is much more environmentally friendly making it a perfect solution for companies looking to switch from more harmful materials.
4. Related information
Since shrink films are designed to be heat sensitive, proper storage and handling are critical to ensure that film shrinkage is not initiated prior to the shrinking process. General Storage Conditions are as follows:
Should not be stored in temperatures above 85°F Should not be exposed to rapid temperature changes Should not be stored in direct sunlight Ideal storage humidity is 40-70% RH Film should be conditioned a minimum of 24 hours at ambient room temperature before use Store rolls in original packaging for dust protection
All product specifications are for informational use only. Each customer and/or end user should determine the suitability of any product for their particular application. The above specifications are based on typical values and most current information. Specific products listed were current at the time of publication, however, all raw materials are subject to change.
Shelf Life: One year when stored at 72°F / 50% RH.
5. FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 2-3 days prepared; mass production time needs 15-25 days normally.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1Tons;
Sea Port: FOB Shanghai
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by LCL or FCL by sea or air shipment.
The delivery time according to your quantity.
Q: 5.What information should I let you know if I want to get a quotation?
A: The external size of your products(Thick x Width x Length)
The quantity.
