Place of Origin:
China
Brand Name:
HYF
Certification:
ISO, SGS, etc.
Model Number:
HYF
35mic-50mic High Shrinkage PETG shrink-sleeve label film For Shaped Bottles
1. Product Description
• PETG shrink film for shaped bottles
• Material: PETG
• Density:1.32±0.02
• Haze: ≤7
• TD: 50-80%
• MD:0-5%
2. Our characteristics
• High transparency, High gloss, Low haze
• Excellent printing performance
• High tensile strength
• High shrinkage rate
• Low natural shrinkage of storage
3. Technical Data Sheet
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | Average Thickness Deviation | μm | ±3 | 0 | Qualified | |||
| 2 | Tensile Strength | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | Elongation | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | Elasticity Modulus | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | HEAT SHRINKAGE | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 60～78 | 78 | |||||
| 6 | Haze | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | WETTING TENSION | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
4. Shrink Sleeves are heavily used in the following major markets:
• Beverage
• Wine & Spirits
• Sports Drinks
• Food
• Dairy
• Personal Care
• Household Care
• Pharmaceutical
5. Our Advantage:
You can apply roll-on shrink-on labels simply by modifying existing wraparound label machinery. That means you can take advantage of the high visibility and superior graphics of shrink labels without making a major capital investment.
These films adhere with quick-setting solvent or UV-curable adhesives and can be printed using gravure or flexographic methods.
With manufacturing excellence, you get the best gauge control in the business, excellent lay flat properties, and superior ink adhesion.
Reverse-printing protects the labels from scratches that might occur during shipping or on the shelf and supports a high gloss surface of the shrink sleeve.

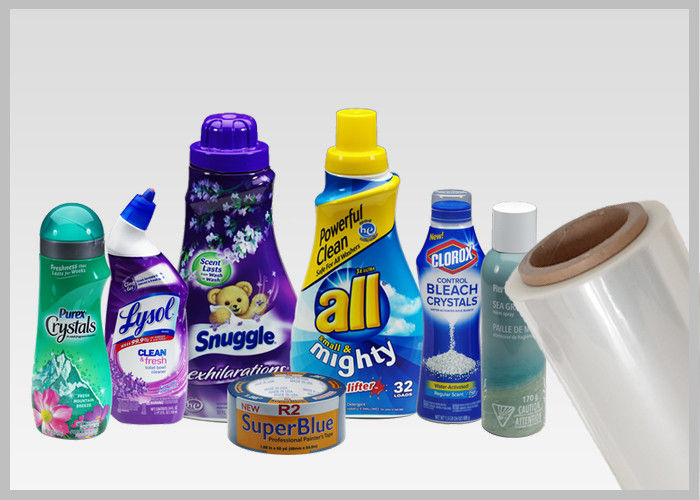

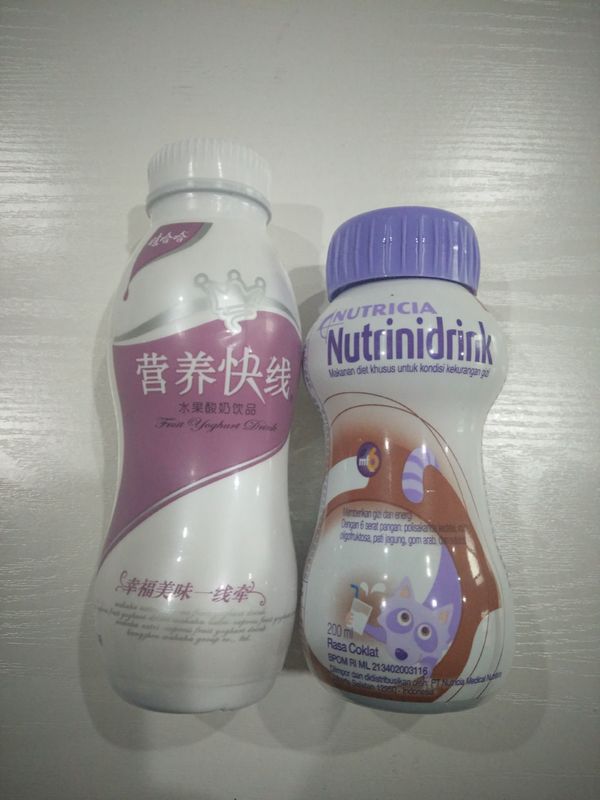

6. Application:
7. FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 2-3 days prepared; mass production time needs 15-25 days normally.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1Tons;
Sea Port: FOB Shanghai
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by LCL or FCL by sea or air shipment.
The delivery time according to your quantity.
Q: 5.What information should I let you know if I want to get a quotation?
A: The external size of your products(Thick x Width x Length)
The quantity.
