Place of Origin:
China
Brand Name:
HYF
Certification:
EU Regulation(Food Contact), ROSH, Reach
Model Number:
HYF
45mic Clear High Thermal Heat Shrink PET Film For Eco- Friendly Shrink Sleeve Label
1. Product Details
The PET Shrink film is suitable for all kinds of printing technologies from ROTO-GRAVURE to FLEXO PRESS using solvent-based to UV cured the ink. Its inherent shrink characteristics allow covering almost all the container with contoured shaped arriving at 78% shrink on transverse direction without having any contraction on the longitudinal direction avoiding also the problematic “smile effect” on the bottom side of the containers.
2. TDS For PET Shrink Film
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | Average Thickness Deviation | μm | ±3 | 0 | Qualified | |||
| 2 | Tensile Strength | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | Elongation | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | Elasticity Modulus | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | HEAT SHRINKAGE | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 60～78 | 78 | |||||
| 6 | Haze | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | WETTING TENSION | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
3. Characteristics & Applications:
1) Material: PET
2) With bright, high class, and valuable sense
3) Specifications can be customized
4) High quality and competitive price
5) With shrinkage above 60-80% in horizontal and 0-3% shrinkage in vertical.
6) Printed colors: 8~10 colors

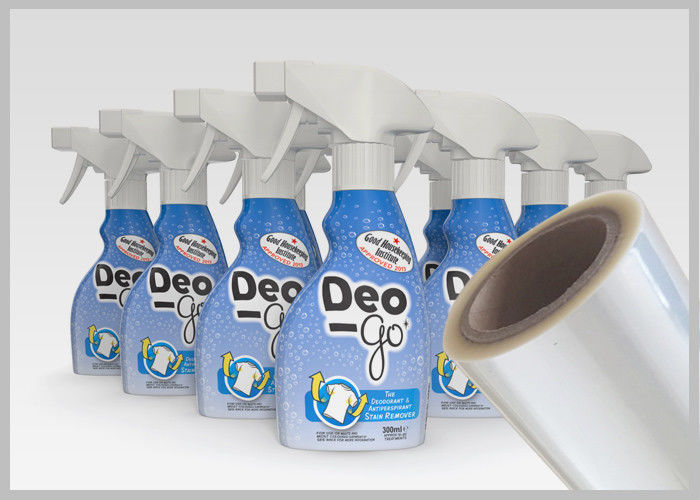

7)Products are widely used in packing bottles, such as beverage, cosmetic, medical, electronic, and other shrink labels of containers.
4. Our advantage
1) Excellent printability
A) Reverse prints with stunning clarity, gloss and presence.
B) Surface printed with existing technology and without special pretreatment.
2) All-encompassing design
A) Ability to wrap around container with 360 degree graphics
B) Front or reverse surface printing brings out the best in colors and graphic design
3) Crystal Clarity
A) Water-like clarity showcases colors and graphics
4) High shrink rate
A) Flushes beautifully against complex contoured surfaces and tight fit remains over time.
B) Reaches maximum shrinkage potential more quickly than competitive products(up to 80% ultimate shrinkage)
C) Higher shrinkage reached at lower temperatures-great for heat sensitive products
5) Halogen-free*
A) Unlike PVC, It is Halogen-free shrink film material.
6) Machine run ability
A) High tensile strength
B) Low coefficient of friction
7) Lower carbon foot print
A) Recycled with PET bottles
B) Halogen free unlike PVC
5. FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 2-3 days prepared; mass production time needs 15-25 days normally.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1Tons;
Sea Port: FOB Shanghai
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by LCL or FCL by sea or air shipment.
The delivery time according to your quantity.
Q: 5.What information should I let you know if I want to get a quotation?
A: The external size of your products(Thick x Width x Length)
The quantity.
Send your inquiry directly to us
