Place of Origin:
China
Brand Name:
HYF
Certification:
ISO, SGS, etc.
Model Number:
Poly Shrink Film
Transparent Biodegradable Shrink Film , High Glossy Polylactic Acid Film
Poly(lactic acid) or polylactic acid or polylactide (PLA) is a biodegradable and bioactive thermoplastic aliphatic polyester derived from renewable resources, such as corn starch, cassava roots, chips or starch, or sugarcane.
1. Production Description
In HYF, we regularly produce PLA heat shrink films SSC100, We will make adjustment according to the customer request.
Thickness: 40/45 micro.
3” core or 6” core.
Max. OD 1000mm.
2. Product key features
1) Environmental-friendly;
2) Lower oxygen omission;
3) compostable;
4) Excellent gauge and shrinkage uniformity;
5) Good ink adhesion;
6) Advanced machining properties;
7) High transparency and good gloss
3. TDS For PLA Shrink Film
| Item | Unit | Test Method | Value | |
| Thickness | μm | ASTM D374 | 45 | |
| Tensile strength | MD | MPa | ASTM D882 | 96 |
| TD | 128 | |||
| Elongation | MD | % | ASTM D882 | 50 |
| TD | 88 | |||
| Heat Shrinkage | MD | % | 100℃/10S | 3.2 |
| TD | 78 | |||
| Haze | % | ASTM D1003 | 2.9 | |
| Transmittance | % | 93.3 | ||
| Gloss | % | GB/T 8807(45°) | 77 | |
| C.O.F(IN/OUT) | μS/μK | ASTM D1894E | 0.51/0.41 | |
| Wet Tension | mN/m | ASTM D2578 | 38 | |
| Seaming Strength | N/15mm | 4.61 | ||
4. Compare with plastic shrink films
1) More environmental;
2) Slow shrinkage curve;
3) Perfect labeling
5. Application

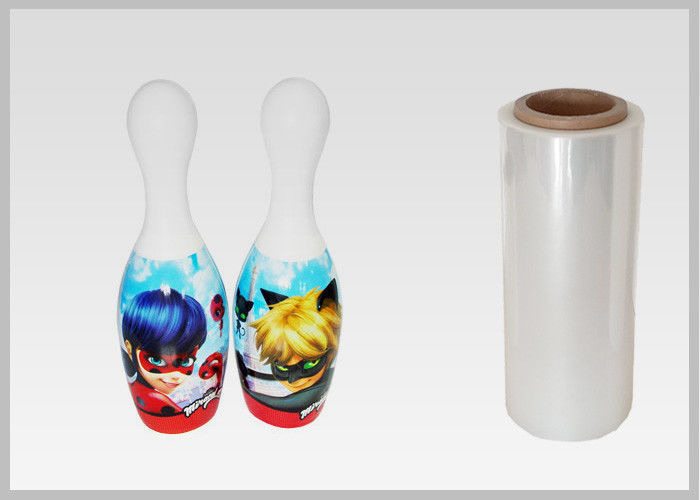

Used for sleeve labels of beverage, food can, and ect..
6. What is Biomass Plastics Film
Bioplastics are plastics derived from renewable biomass sources, such as vegetable fats and oils, corn starch, or microbiota. Bioplastic can be made from agricultural by-products and also from used plastic bottles and other containers using microorganisms. Common plastics, such as fossil-fuel plastics (also called petrobased polymers) are derived from petroleum or natural gas. Production of such plastics tends to require more fossil fuels and to produce more greenhouse gases than the production of biobased polymers (bioplastics). Not all bioplastics are biodegrade nor biodegrade more readily than commodity fossil-fuel derived plastics. Bioplastics are usually derived from sugar derivatives, including starch, cellulose, lactic acid. As of 2014, bioplastics represented approximately 0.2% of the global polymer market (300 million tons).
Biomass plastics utilize the biomass resources of regenerable biological origin. Currently, biomass plastics based on plant-derived materials are in practical use. The plastics are high-polymer materials made of raw materials consisting of starch, sugar, or cellulose contained in plants. One example is polylactic acid, the chemically-synthesized lactic acid that is fermented from starch. Even if CO2 is ejected when polylactic acid is incinerated, it is utilized in photosynthesis by growing plants that are used as materials; the CO2 in the atmosphere does not increase (carbon-neutral). Therefore, it is an environmentally-friendly material that does not contribute to global warming (Figure 1). Furthermore, this material is as strong and rigid as polystyrene. However, for polylactic acid to be used as a material in durable goods, issues related to heat resistance and impact resistance as well as flame retardancy need to be addressed; the material must provide non-flammable parts for electric and electronic devices. Furthermore, issues related to molding techniques formass production of components have to be addressed.
1) How does HYF package the product?
HYF packages two ways, vertical (which is the usual manner of shipment.) and horizontal for some of our larger sizes. We have two sizes of paper cores, six inch (153mm) and three inch (76mm).
For vertical packaging, the roll is wrapped with film with corepads attached to the ends of the roll by inserting plastic plugs into the core. The roll is then wrapped with thermal insulation film for protection.
For horizontal packaging the roll is wrapped with polyethylene film and set on fumigation-free plywood end boards. The rolls are then strapped to each other and to the pallet. Finally, each pallet is then stretched wrapped prior to shipment.
2) How do I know how many splices are in a roll?
The number of splices is listed on the production label.
3) What if I have a need for a special product?
If a customer has a special product need, HYF would take appropriate action after confirming and discussing the issue with the customer.
4) How should the film be stored?
Heat shrinkable film is unlike other film substrates. You must take care that the film is stored at or below the temperature suggested to prevent premature shrinkage from occurring. Care must also be taken in storing the film after printing, and in shipping film to co-packers or end-users. Some natural shrink information is provided for you on each specification sheet. This goes for all shrinkable film.
5) What is the glues for PVC, PETG, PLA shrink film?
For PVC and PLA shrink film, the glue is Cyclohexanone
For PETG shrink film, the glue is 1.3 dioxane.
6) Is your PVC shrink film cast or blown?
Our PVC shrink film is blown.
7) What is the transportation condition for shrink films?
It should be shipped by reefer container in +15℃ with air.
8) Can I receive a sample of your products?
Yes, you can.
For PVC and PETG shrink film, one small roll sample with 200m could be provided as free sample, but the transportation fee is afforded by your side.
For PLA shrink film, the sampling fee and transportation need be afforded by your side.
9) What is the minimum number of shrink sleeves I can order?
Small order could be accepted. However, due to the features of shrink films, reefer container is suggested to be used during the shipment.
10) How shrink sleeve films be stored?
--- Please store it in temperatures above 30℃ (86°F) or below 10℃ (50°F)
--- Do not expose to rapid temperature changes
--- Do not store in direct sunlight
--- For mechanical, moisture and dust protection, store film in its original packaging.
11) How do I request a quote?
You can request a quote by speaking with us online or send emails. For a firm quote, it is better to provide us the type of film with detailed size and quantity.
