Place of Origin:
China
Brand Name:
HYF
Certification:
ISO, SGS, etc.
Model Number:
HYF
Descriptions:
PETG is a heat-shrinkable film that combines high overall shrinkage with significantly reduced shrink force. It is ideal for applications where reduced contours on the label top and bottom are required, it has excellent transparency and offers a machine direction (MD) shrink curve exhibiting significant growth. The favorable film toughness and shrinkage character combine to make a film suitable for a wide variety of container shapes. The film thickness is from 20-80mic, TD Shrinkage from 60-70%.
Usage:

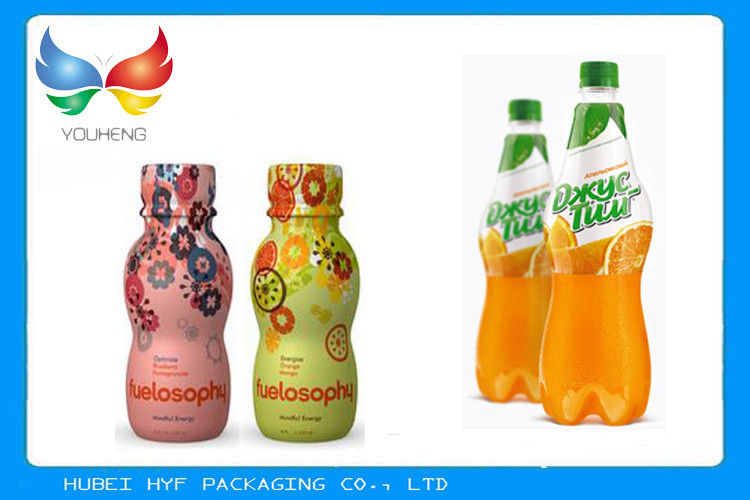

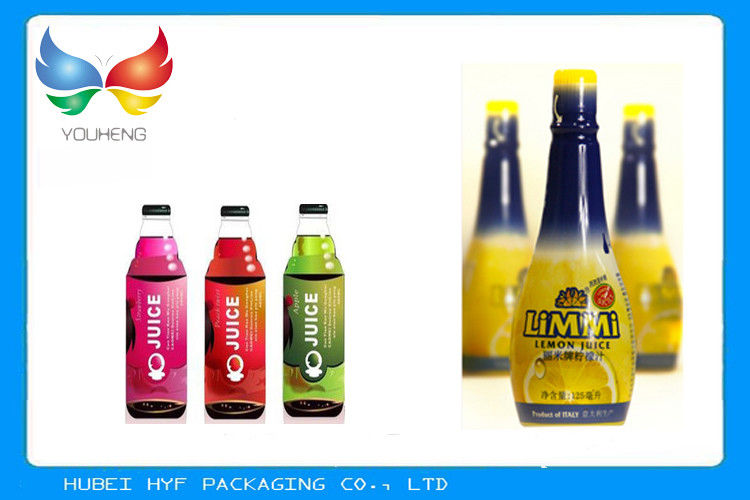

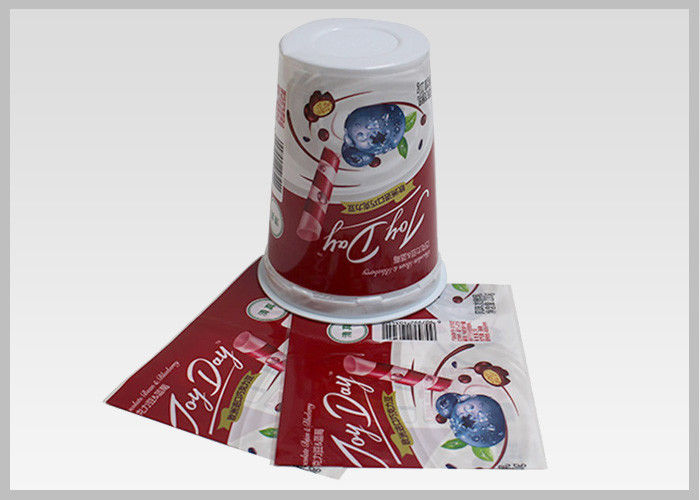

| Widely for all types of bottles, cups, trays printing |
| Used for making full body sleeves and containers |
Product Specifications:
| Thickness | 20mic - 80mic |
| Width | 150mm - 1000mm |
| Length | 2500m - 5000m |
| The shrinkage | 60% - 70% |
| Sample | Can provide free samples of 150m - 200m |
Product Technical Data:
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | TENSILE STRENGTH | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | ELONGATION | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | (Elasticity Modulus) | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | HEAT SHRINKAGE | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 60～70 | 66 | |||||
| 6 | (HAZE) | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | WETTING TENSION | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
Storage:
1. The PET shrink film are suggested to be stored in the warehouse with temperature below 23℃, if in hot
season, use aircondition or other solution to cool down the warehouse.
2. The film storage period is 3 months. Please try to use up film within 3 months while they are at perfect
conditon.
Shipping:
| NO | ITEMS | INFORMATION | |
| 1 | Payment | 30% deposit paid bY T/T or L/C before production,and 70% balance before shipment | |
| 2 | Package | Inner | 1. bubble film--to protect from collision during transportation 2. specified label--factory label or customized label without factory information |
| Outer | Different packing way according to roll size or customer's request | ||
| 3 | Shipment | By Express | DHL, FEDEX, UPS, TNT or per your requoirements. |
| By Sea | Loading port is Shanghai, normally 15-20 days. | ||
| By Airport | Form air port to air port, normally 3-5 days | ||
FAQ:
1. What is your MOQ?
Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 150m - 200m.
3. What is your delivery time?
We wil deliver in 15-20 work days.
4. Can you accept mixed products in one container?
Yes, we accept for sure.
