Thickness High Heat Shrinkage Clear PET Shrink Film For Bottle Printing And Packing
Production characterization:
POLYESTER(PETG) considered as a kind of ester film met friendly environment ,is mainly used to pack with PET containers or bottles,provided that can cut down recycling cost.PETG shrink film is available for a variety of packaging types,sleeves,tamper evidence,extruded roll stock,shtink bags or cap seal according to customers' size.
Many large companies are switching to the versatility and sustainability of PETG over PVC and OPS including Coca-Cola,Pepsi,Nestle,and Unilever,The benefits of PETG shrink film in the consumer markets have well received.
Advantages:
1. Optimize the shapes of the containers after the labeling.
2. Most suitable for irregular shaped bottles or cans, various shaped containers and so on.
3. Environment-friendly material
4. Non-poisonous
5. Non-pollutant

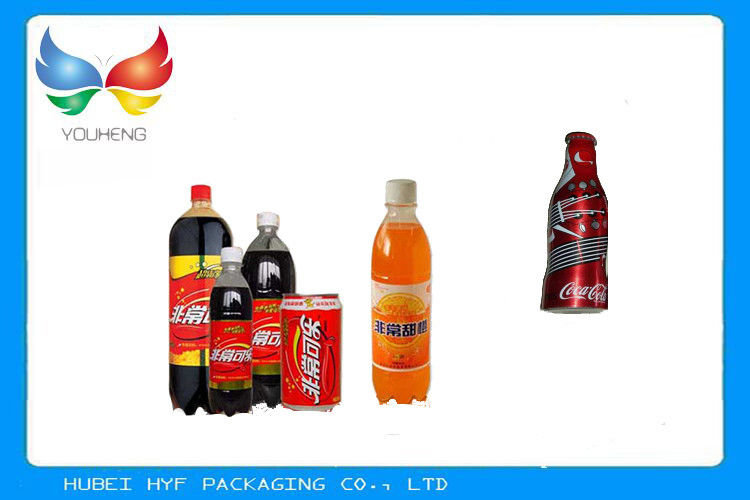

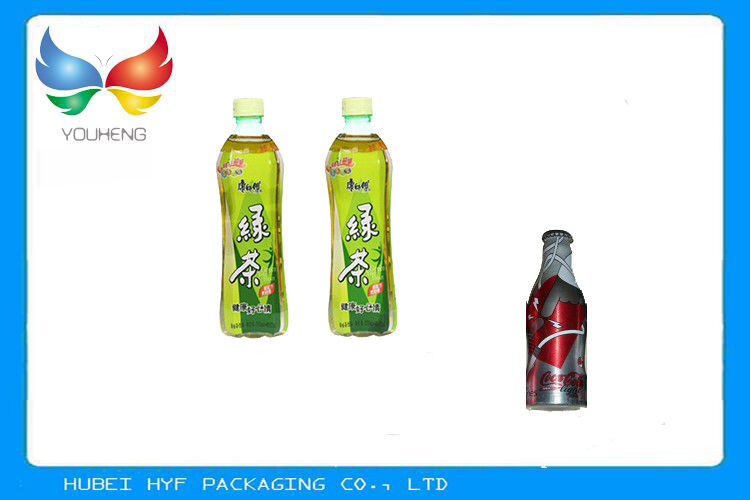

Application:
Production Parameter:
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | TENSILE STRENGTH | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | ELONGATION | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | (Elasticity Modulus) | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | HEAT SHRINKAGE | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 60～70 | 66 | |||||
| 6 | (HAZE) | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | WETTING TENSION | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
Before confirm the order we need know following:
1. Style of the product?
2. Number of colors to be printed?
3. Content to be printed?
4. Any decoration needed?
5. Approx. size?
6. Usage?
7. Quantity?
Our advantage:
1. We produce all products from the raw materials,so our price is competitive
2. We have advanced production line and professional team
3. Delivery on time
4. Quality control :ISO9001:2000 quality management system
5.We have over 9 years of production experience
6. All of your questions will be replied within 24 hours ,and we offer Good after-sales service
7.Your business relationship with us will be confidential to any third party.
Thanks for your precious time.We strive continually to improve for the benefit of our customer and partners.Contact me now,we're your best choice!
