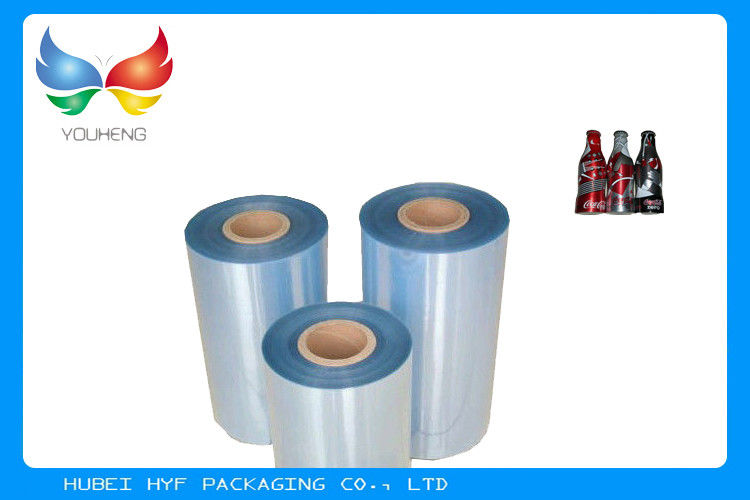

High Shrinkage 45mic Clear PET Shrinkable Film Rolls Plastic Film For Sleeves
1. Production Details

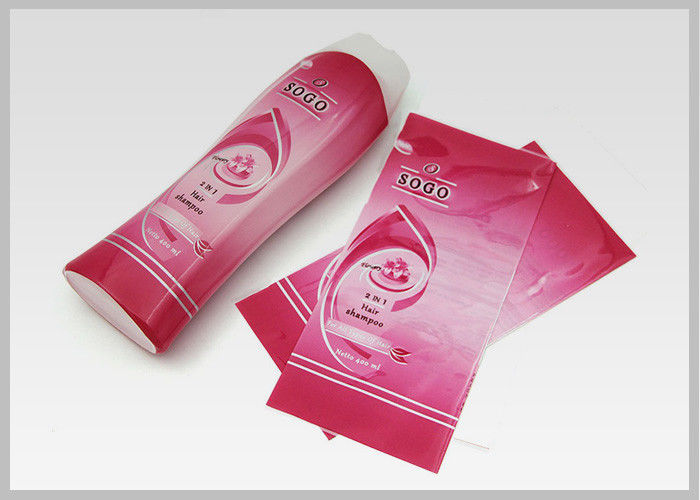

POLYESTER(PETG) considered as a kind of ester film met friendly environment, is mainly used to pack with PET containers or bottles, provided that can cut down recycling cost.PETG shrink film is available for a variety of packaging types, sleeves, tamper evidence, extruded roll stock, shrink bags or cap seal according to customers' size.
Many large companies are switching to the versatility and sustainability of PETG over PVC and OPS including Coca-Cola, Pepsi, Nestle, and Unilever. The benefits of PETG shrink film in the consumer markets have well received.
2. Features
1) Good printing quality.
2) Good Sealing.
3) Stable shrinkage.
4) Good for automatic sleeving machine.
3. Specification
1) Thickness: 25mic - 70mic
2) Width: 350mm - 1000mm
3) Length: 1000m - 5000m
4) The shrinkage: 45% - 53%
5) Can provide free samples of 150m - 200m.
4. Production Parameter
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | Average thickness deviation | μm | ±3 | 0 | Qualified | |||
| 2 | Tensile Strength | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | Elongation | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | Elasticity Modulus | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | HEAT SHRINKAGE | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 60～78 | 66 | |||||
| 6 | Haze | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | WETTING TENSION | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
Packaging Details:

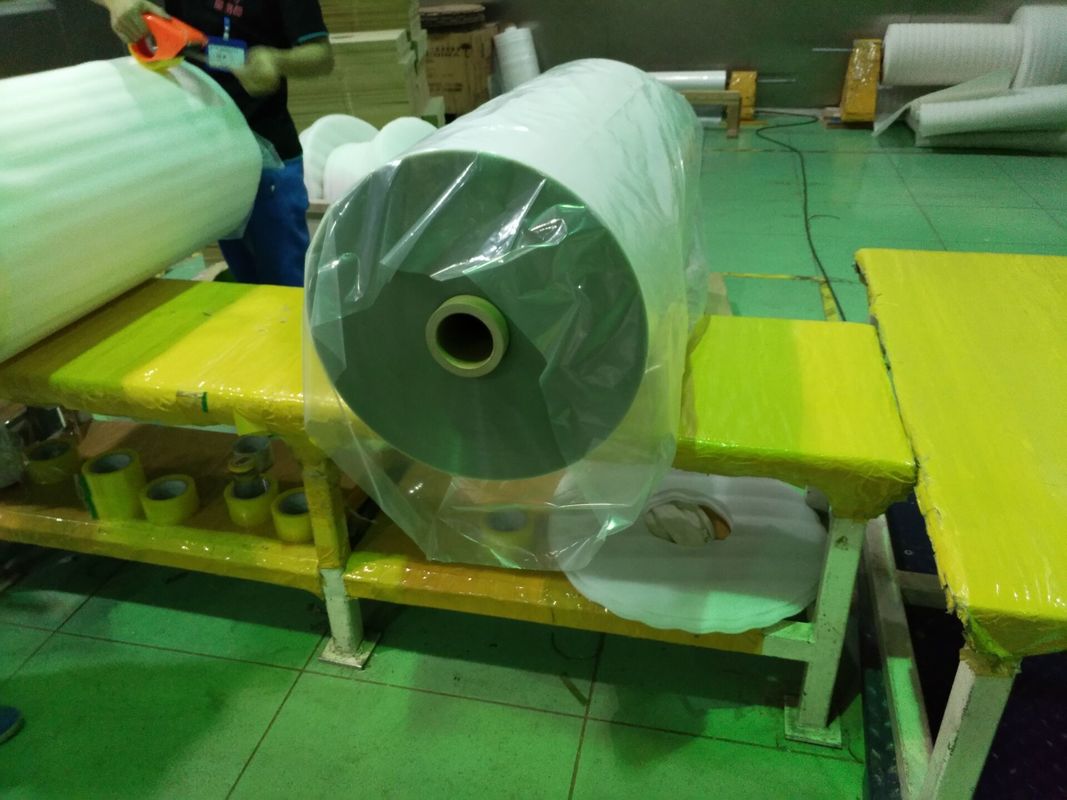

Film in rolls. Covered with wrap film and heat insulation film. Rolls on the pallet.
Delivery Detail:
15-20 days after receiving the down payment
7. Production Machines

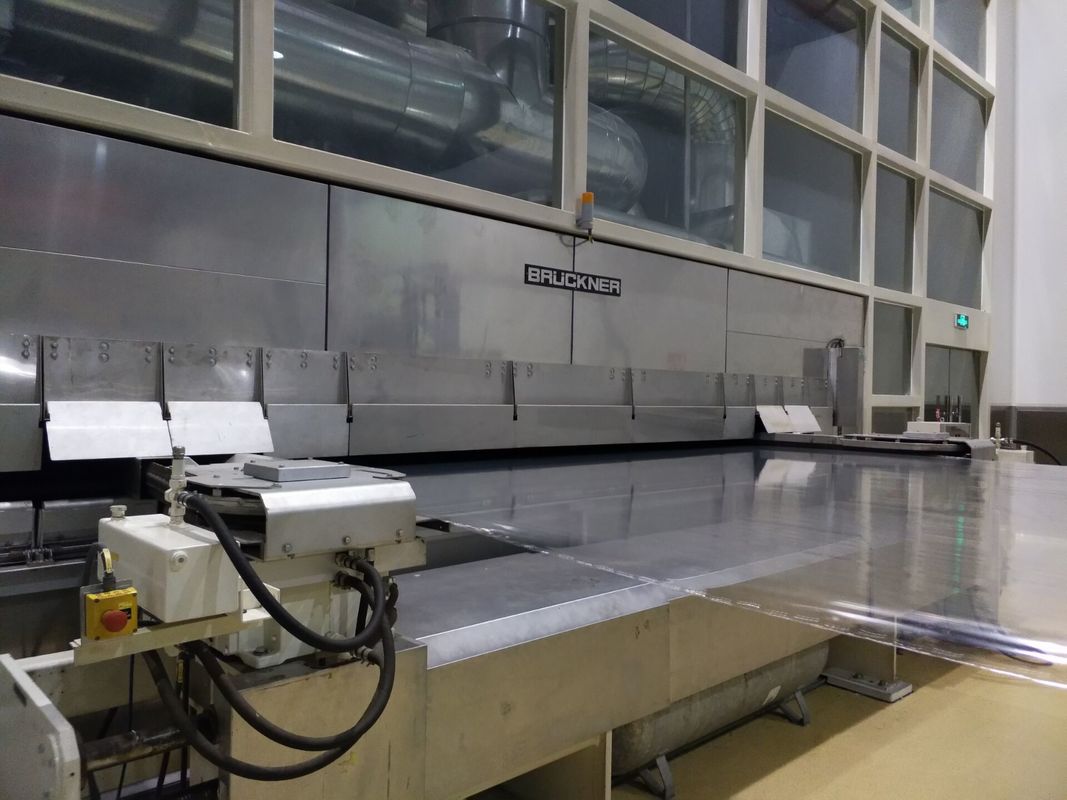

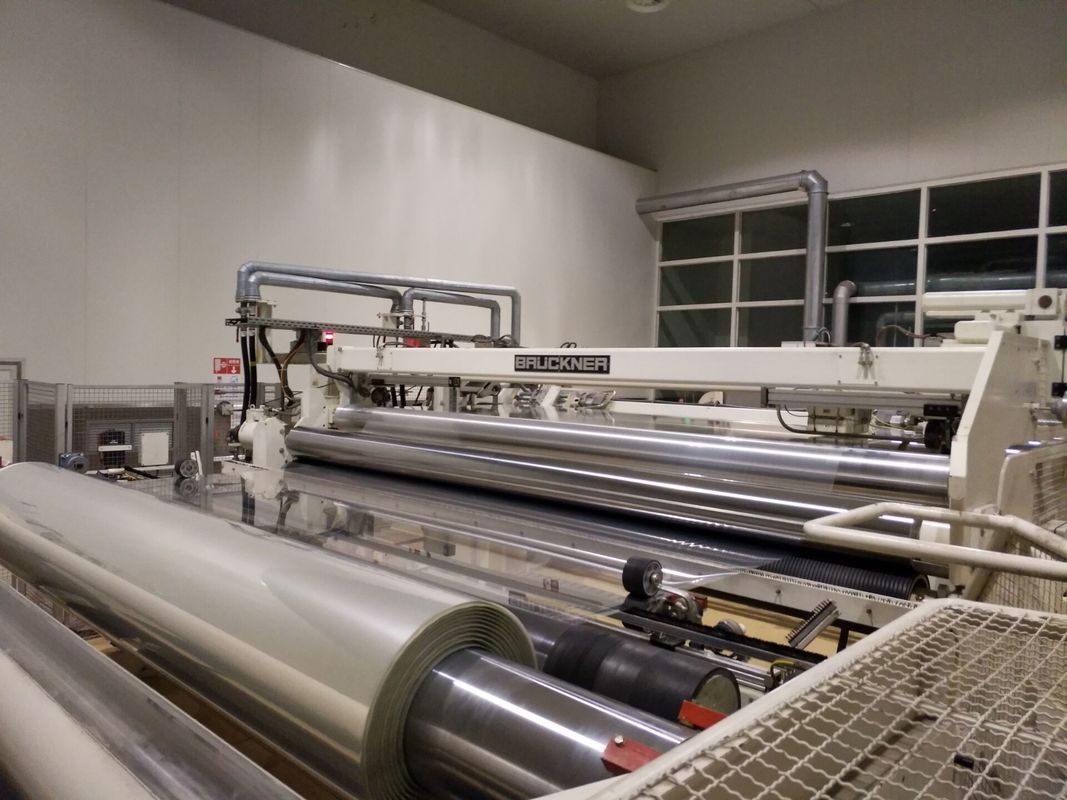

Production machine: Two Bruckner Production with 12,000 tons per year
Cutting Machine: Kampf
8. Our Advantage
1) Factory direct sales price
2) Delicate workmanship and exquisite products manufactured
3) All 100% virgin material and diverse styles offered
4) We believe in honesty, cooperation, and innovation.
5) Best Packaging, Best Service, Best Price!
