Product Details:
Payment & Shipping Terms:
|
| Material: | PET | Hardness: | Soft |
|---|---|---|---|
| Usage: | Package | Processing Type: | Multiple Extrusion |
| Clarity: | Opaque | Shrinkage: | 60%~78% |
| High Light: | silicone coated film,plastic shrink film |
||

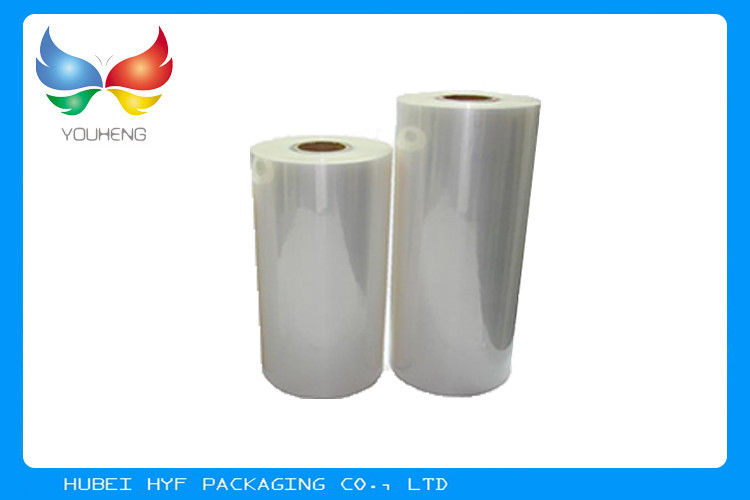

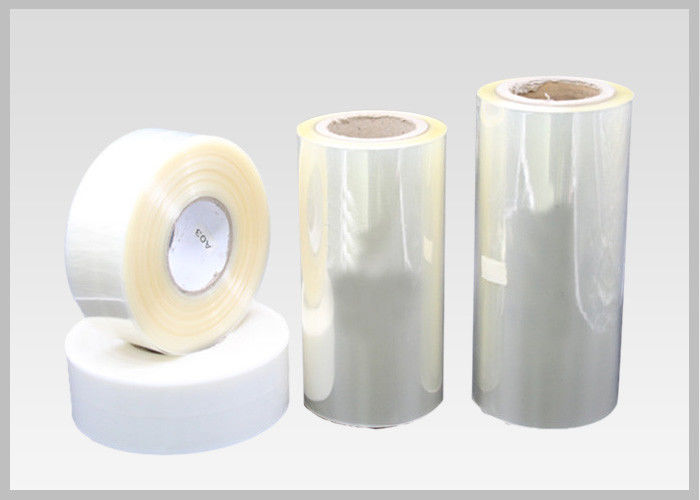

High Shrinkage Transparent PET Shrink Film For Label Printing
Product Descrption
Shrink Film is made up of three kinds of materals: PVC, PET, POF. Among these shrink films, PET is the most advanced one direction shrink film. And to some extent, PET shrink film id close to another two shrink films in terms of technical index, physical performance, application areas and so on. However, there are some differences. Compared with PVC shrink film, PET is more eco-friendly and has superior printability and high transparency and excellent performance in transverse direction shrinkage.
Specifications
Shrinkage: 60%~78%
Thickness: 20~80mic
Width: 350~2000mm
Density: 1.35g/cm3
Technical Parameters
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | TENSILE STRENGTH | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | ELONGATION | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | (Elasticity Modulus) | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | HEAT SHRINKAGE | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 60～70 | 66 | |||||
| 6 | (HAZE) | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | WETTING TENSION | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
Advantages
1. Neatness by producing in the 1000 grade clean room
2. Low viscosity but little change of it after being repeatedly pasted.
3. No residue after it’s peeled off.
4. Anti-static function: The voltage is less than 200V when it’s being peeled off.
5. Light block
6. Good stretchability

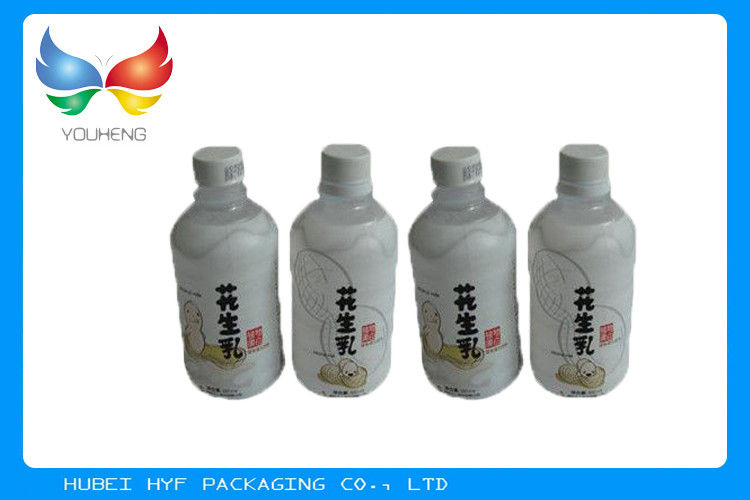

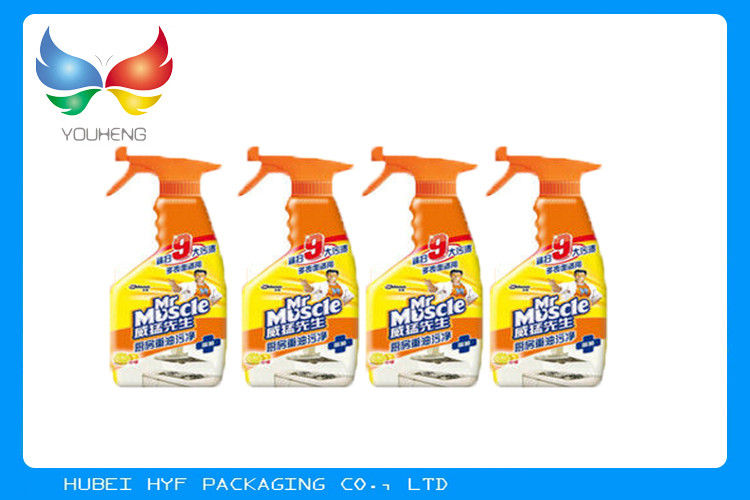

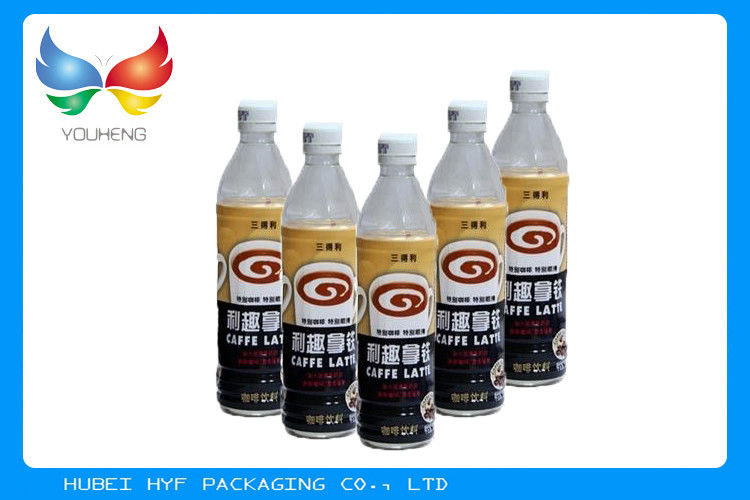

Application
Shipping ang Packaging
FAQ:
1. Q: What's your product?
A: We produce PET, PVC, POF shrink film, holographic film, metallized film and pearlized film.
2. Q: How many days will samples be finished? How about the mass production?
A: Generally, 5-14 days for samples making.
The lead time of mass production will depend on quantity, product craft, etc.
3. Q: Could you customize the products?
A: Yes, we can customize the color, shape, materials and so on.
4. Q: How do you ship the finished products?
A: .-By sea
-By plane
-By couriers,such as TNT, DHL, FEDEX, UPS, etc.
