40mic Transparent Soft Heat PETG Shrink film For Sleeve Labels
1. Product Description
PETG film is the world well-known environmental friendly shrinkable material. Its technical index, physical performance, application arrange and method is close to PVC shrinkable film. PETG shrinkable film is the most advanced one direction shrink film. PETG TD shrinkable film has superior printability and high transparency, excellent performance in transverse direction shrinkage. Widely applications in the package of normal shape and extraordinary shape bottles. Very suitable for different printing process and labeling machine.
2. Technical Data Sheet
Item | Unit | Typical Value | Testing Method | |||
Thickness | mic | 40, 45, 50, 60 | ASTM D374 | |||
Thickness Tolerance | % | ±3 | ||||
Material Yield | m²/kg | - | ||||
40mic | 18.9 | |||||
45mic | 16.8 | |||||
50mic | 15.2 | |||||
60mic | 12.6 | |||||
Tensile Strength | MD | Mpa | 50 | ASTM D882 v=100mm/min |
||
TD | 240 | |||||
E-Modulus | MD | 1900 | ||||
TD | 4300 | |||||
Elogation At Break | MD | % | 430 | |||
TD | 39 | |||||
Heat Shrinkage | MD | % | 0 | ASTM D 1204 90℃/10Sec/Water |
||
TD | 78 | |||||
C.O.F | us | - | 0.485 | ASTM D1894 E | ||
uk | 0.43 | |||||
Haze | % | 3.65 | ASTM D1003 | |||
Gloss(45°) | - | 110 | ASTM D2457 | |||
Dyne | mN/m | 40 | ASTM D2578 | |||
Density | g/cm³ | 1.32 | ASTM D792
|

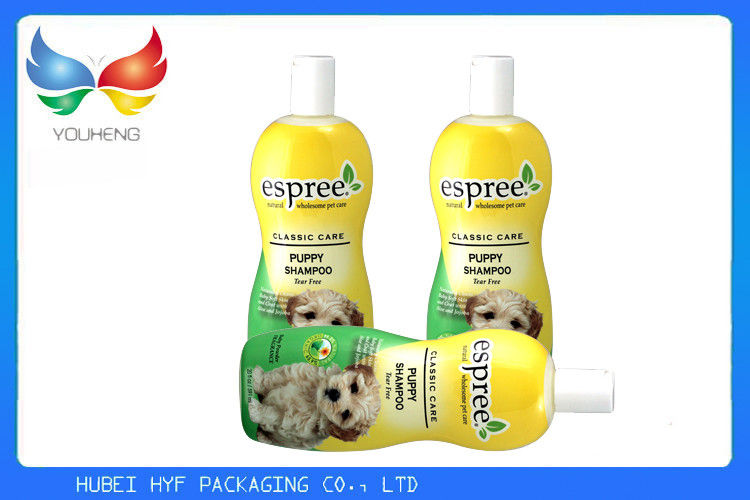

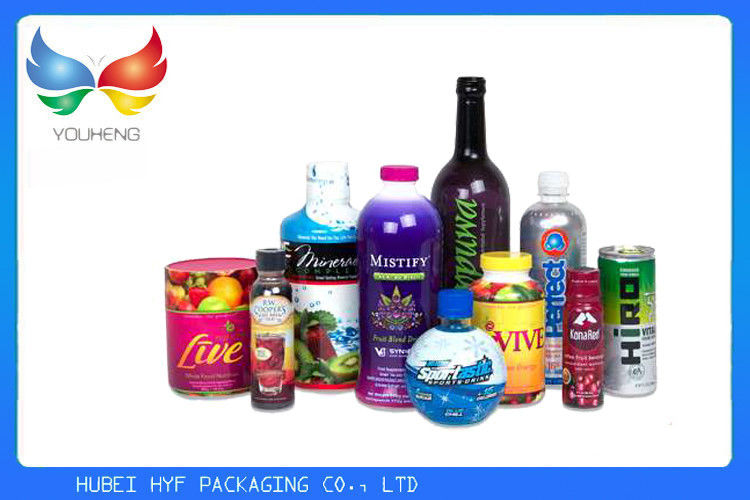

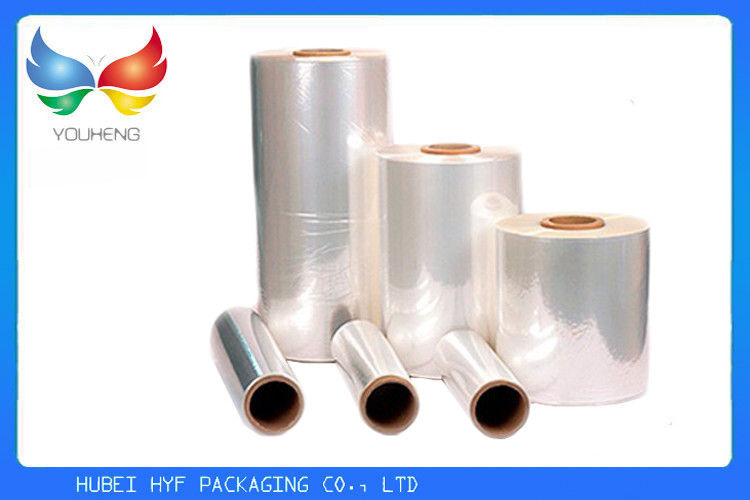

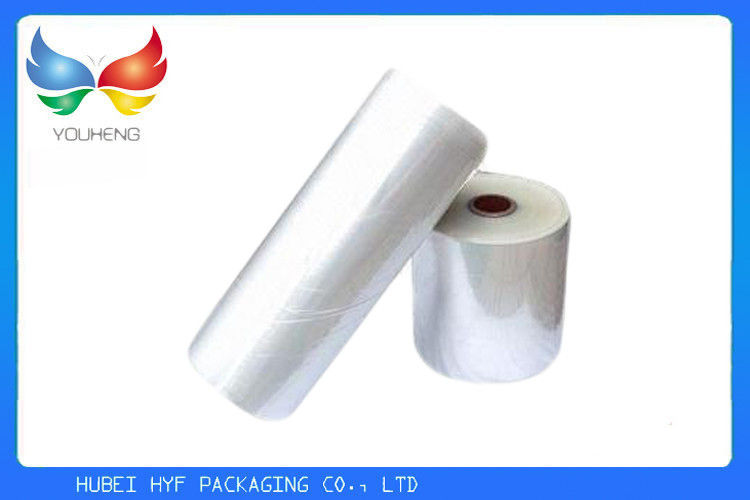

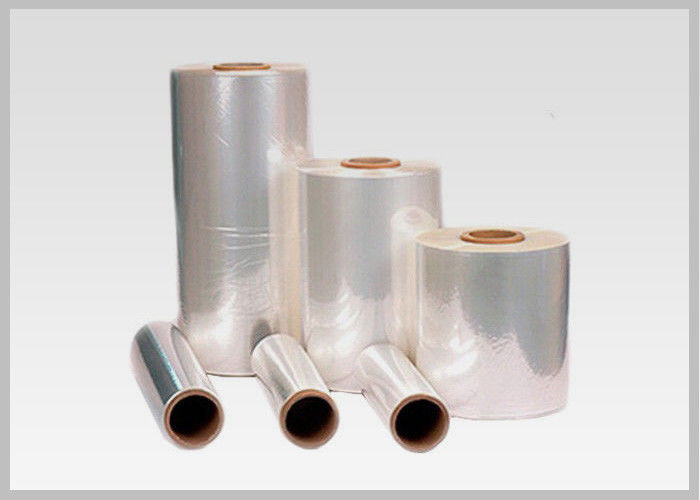

3. Picture Of Product
4. Features
1) High Gloss
2) High Transparency. High-impact strength.
3) Suitable for rotogravure, flexographic, rotary offset&digital printing.
4) Excellent processability during printing, tube forming & shrinking.
5) Simple& multiple contours, high shoulder& narrow neck configurations.
6) Thickness 30-60 mic. Shrinkage TD 50-80%
5. Application
1) Food & beverage industries: Mineral Water, Soft Drinks, Liquors, Pickles, Jams, Jellies, Fruit Juices, Tea, Coffee, Spices, Ghee, Edible Oils etc. In Bottles/Cans/Jars
2) Printing & Packaging industries
3) Cosmetic & Toiletry industries: Powder, Perfume, Hair Oil, Shampoo etc. in bottles & jars
4) Pharmaceutical industries: Liquid Bottles, Tablet/Powder Containers & Jars
5) Electrical industries
6) Stationery & Writing instrument industries
7. FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 2-3 days prepared; mass production time needs 15-25 days normally.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1 Ton;
Sea
Port: FOB Shanghai
Q: 4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by LCL or FCL by sea or air shipment.
The delivery time according to your quantity.
Q: 5. What information should I let you know if I want to get a quotation?
A: The external size of your products(Thick x Width x Length)
The quantity.
