Place of Origin:
China
Brand Name:
HYF
Certification:
ISO, SGS, etc.
Model Number:
HYF
40mic Transparent Soft Heat PETG Shrink film For Sleeve Labels
1. Product Description
POLYESTER(PETG) considered as a kind of ester film met friendly environment ,is mainly used to pack with PET containers or bottles,provided that can cut down recycling cost.PETG shrink film is availabel for a variety of packaging types,sleeves,tamper evidence,extruded roll stock,shtink bags or cap seal according to customers' size.
Many large companies are switching to the versatility and sustainability of PETG over PVC and OPS including Coca-Cola,Pepsi,Nestle,and Unilever,The benefits of PETG shrink film in the consumer markets have well received.
2. Technical Data Sheet
No | Test Item | UNIT | Standard | Test Result | Decide | |||
1 | Average thickness deviation | μm | ±3 | 0 | Qualified | |||
2 | TENSILE STRENGTH | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
(TD) | MPa | ≥142 | 231 | |||||
3 | ELONGATION | (MD) | % | ≥300 | 591 | Qualified | ||
(TD) | % | ≥35 | 55 | |||||
4 | (Elasticity Modulus) | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
(TD) | MPa | ≥3000 | 7370 | |||||
5 | HEAT SHRINKAGE | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
(TD) | % | 60~70 | 66 | |||||
6 | (HAZE) | % | ≤7.0 | 2.2 | Qualified | |||
7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
8 | WETTING TENSION | mN/m | ≥38 | ≥38 | Qualified | |||
9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified |
3. Advantages
PETG is an amorphous plastic resign of the polyster family.Due to its high shrinkage,highest among all shrink sleeve material, PETG is an ideal solution for container shrink film that have complex geometries and require superior printability.Compared to other material, PETG resign is much more environmentally friendly making it a perfect solution for companies looking to switch from more harmful materials.

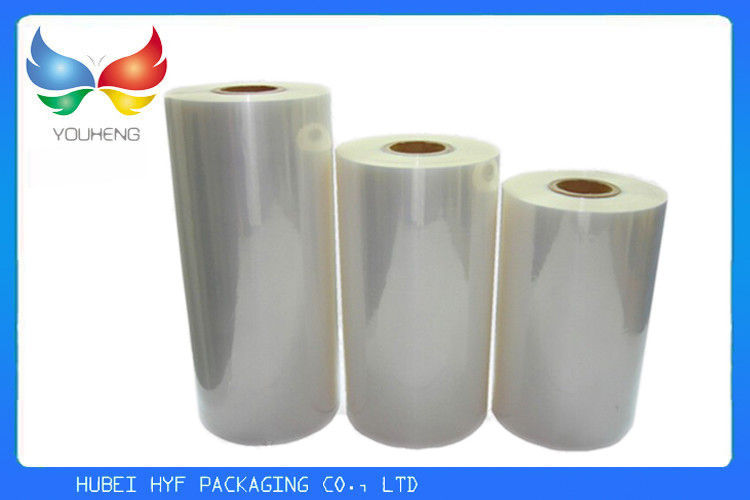

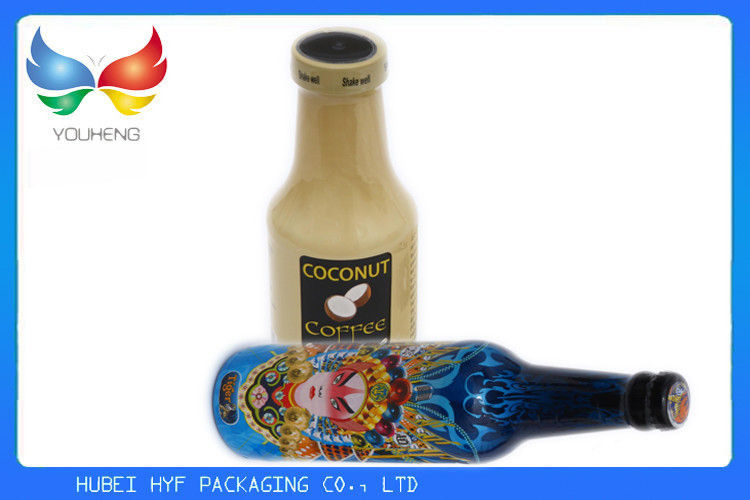

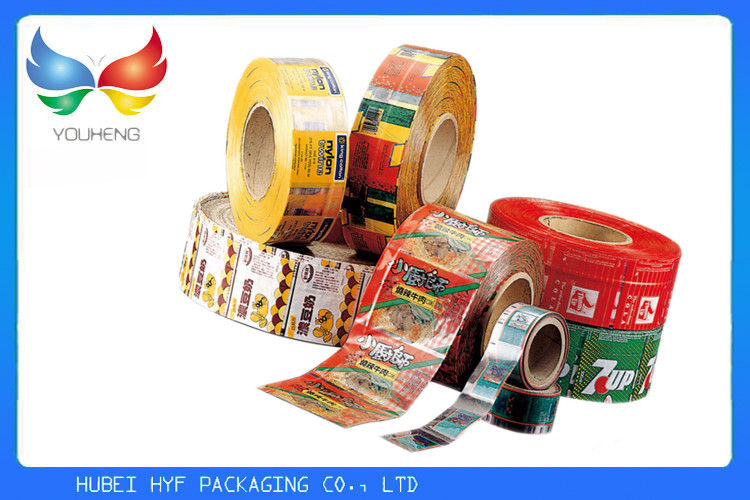

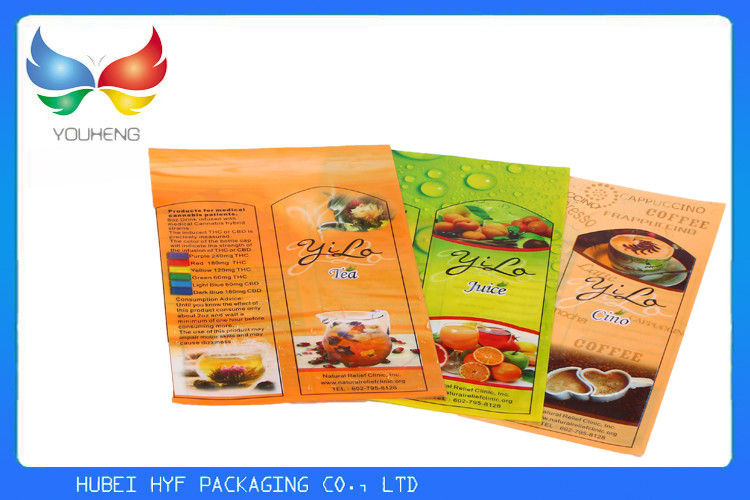

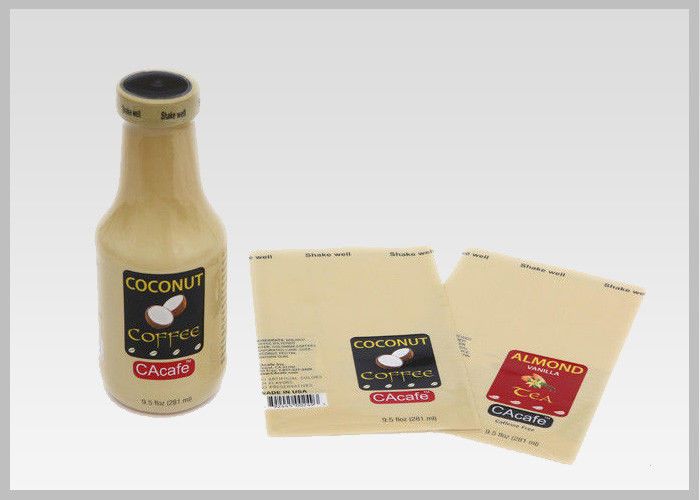

4. Product Show
5. Storage
1) Store our PET(G) shrink films below 30℃ in its original packaging;
2) Avoid damages from direct sunlight, high moistyre and falling down.
3) Shelf life: 6 months.
6. FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 2-3 days prepared; mass production time needs 15-25 days normally.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1Tons;
Sea Port: FOB Shanghai
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by LCL or FCL by sea or air shipment.
The delivery time according to your quantity.
Q: 5.What information should I let you know if I want to get a quotation?
A: The external size of your products(Thick x Width x Length)
The quantity.
