|No. Of Joint Seam:||No More Than 1||Industrial Use:||Beverage Labels|

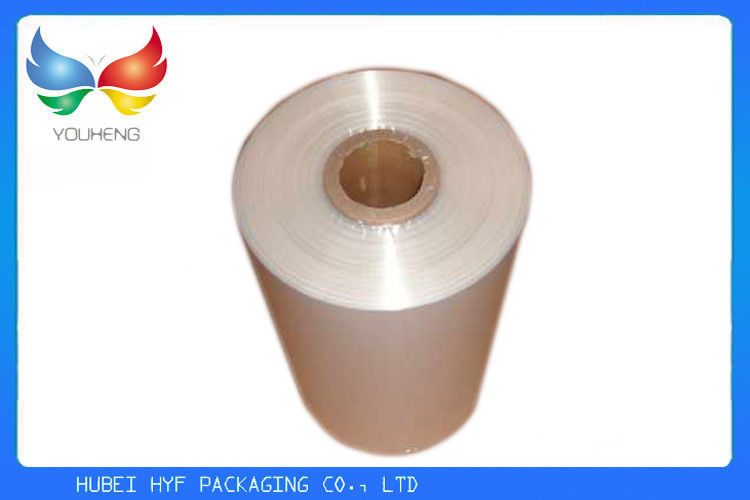

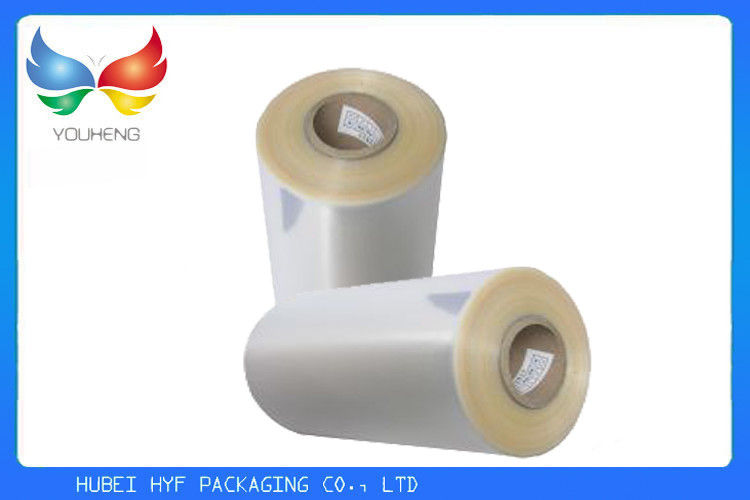

45 Mic Printable Plastic PVC Shrink Film For Beverage Label
1. Product Description
PVC SHRINK FILM(Polyvinyl Chloride)is the most common shrink film type in the market now. Printing grade PVC shrink film is one kind of economic packaging material with good quality which is widely used in all kinds of the packaging industry, such as food, beverage, and other daily use.
PVC is a high-density film that shrinks at low.
1) Thickness: 35-70 mic
2) Width: 200-1200mm
3) TD:48%-52% MD:0-4%
5) No of Joint Seam: No more than 1
3. Technical Data Sheet
|NO.||Properties||Unit||Test Standard||Test Method|
|1||Width||mm||(Order Sheet standard)0-3||---|
|2||Thickness Max tolerance||%||±12%||ASTM D 374|
|3||Tensile Strength||MD||N/mm2||≥42||ASTM D 882|
|TD||N/mm2||≥50||ASTM D 882|
|4||Elongation at Break||MD||%||≥70||ASTM D 882|
|TD||%||≥50||ASTM D 882|
|5||Shrinkage||MD||%||Order Sheet standard±2.5||ASTM D 1204|
|(100°C,8 Seconds)||TD||%||Order Sheet standard ±2.5||ASTM D 1204|
|6||Friction Coefficient||---||≤0.5||ASTM D 1894E|
4. Advice For PVC Shrink Film User
Over the sea: The films are suggested to be shipped with reefer container.If less than container loading, the anti-heat material is advised to be used for packing to protect the films.
Container over the land: The truck with electronic power should be used for moving the container between port and factory to keep the reefer container working.
5. Storage Of PVC Shrink Film
The films are suggested to be stored in the warehouse with the temperature below 25℃.if in the hot season, putting on air-conditioning or other solution to cool down the warehouse should be taken.
The films storage period is 3 months, please try to use up films within 3 months while they are in perfect condition.
Due to the films, after printing, are dried at 60℃ to 70℃ printing line, when they are re-winded, the heat would be left inside of films, please slit the films as short time as possible to release the heat and prevent them from shrinking.
Please leave 0.5-1.5mm as tolerance in label's diameter size for a safety. For example, our domestic clients would leave 0.5mm as tolerance in winter, but 1.5mm as tolerance in summer.
The labels should be packed and stored at the place with the temperature below 25℃.
In the hot season, the labels are suggested to be transported to the user in the morning or at night, or other protection methods should be taken to prevent the labels from natural shrinking. temperature ranges.The most commonly used shrink sleeve material for the market. It has excellent shrinkage rates, clarity, print quality, and a wide range of both shrink temperatures and shrinks ratios.PVC also has high impact strength for extra weather resistance. This scuff resistant shrink sleeve material has the lowest cost.

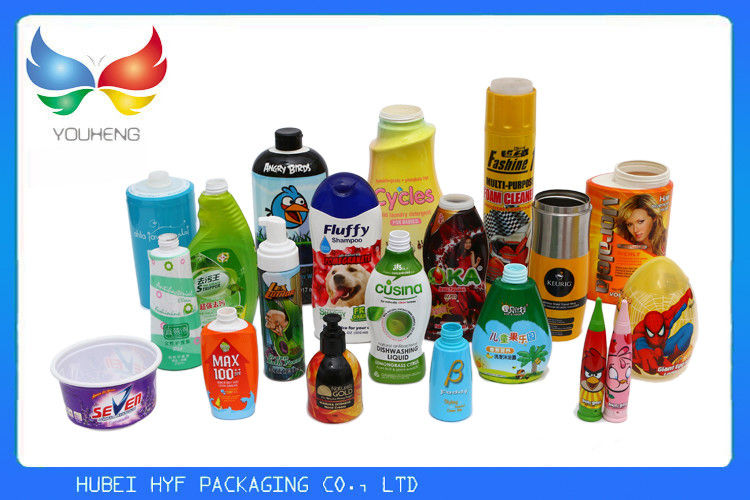

6. Application For PVC Shrink Film
7. Production Flow
BLOWING PVC SHRINK FILM PROCESS
8. Production Line Of PVC Shrink Film
8. Packaging & Shipping
1. Our package is careful enough to avoid the damage of both ends of the films.
2. Our package is strong enough to withstand bumping and rough handling during the long-distance transportation over the sea.
3. We have stick stamp about product details on each pallet.
4. Roll length less than 3000 meters:6 rolls for each wooden pallet.
5. Roll length between 3000 meters to 5000 meters: Suspension type wooden pallet.
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 2-3 days prepared; mass production time needs 15-20 days normally.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1Tons;
Sea Port: Wuhan/Shanghai
Q: 4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by LCL or FCL by sea or air shipment.
The delivery time according to your quantity.
Q: 5. What information should I let you know if I want to get a quotation?
A: The external size of your products(Thickness x Width x Length)
