Place of Origin:
China
Brand Name:
HYF
Certification:
ISO, SGS, etc.
Model Number:
HYF

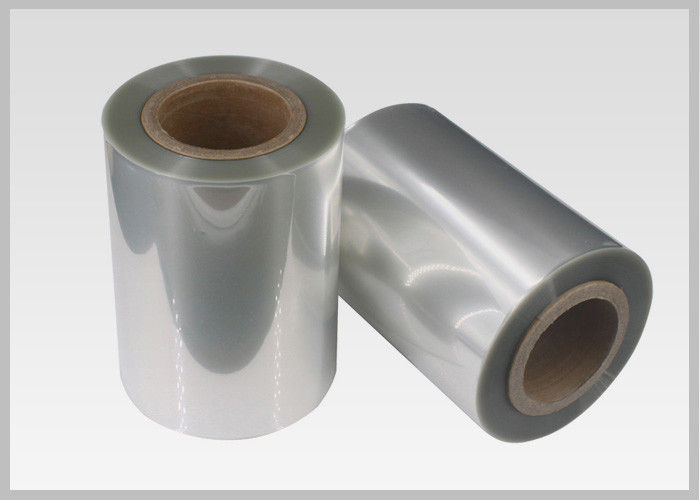

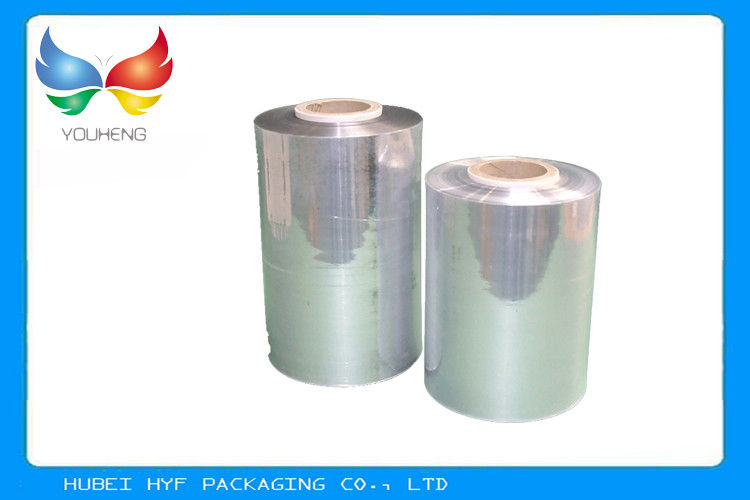

40mic PETG/PET Shrink Film Heat Sealing Thermal Sealing Film For Shrink Sleeve Label
1. Product Details Of PETG/PET Shrink Film
POLYESTER(PETG) considered as a kind of ester film met friendly environment, is mainly used to pack with PET containers or bottles, provided that can cut down recycling cost.PETG shrink film is available for a variety of packaging types, sleeves, tamper evidence, extruded roll stock, shrink bags or cap seal according to customers' size.
Many large companies are switching to the versatility and sustainability of PETG over PVC and OPS including Coca-Cola, Pepsi, Nestle, and Unilever. The benefits of PETG shrink film in the consumer markets have well received.
2. Product Specifications Of PETG/PET Shrink Film
1) Thickness: 20mic - 80mic
2) Width: 450mm - 1200mm
3) Length: 2500m - 5000m
4) The shrinkage: 70% - 78%
5) Can provide free samples of 150m - 200m.
3. Product Parameter Of PETG/PET Shrink Film
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | Tensile Strength | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | Elongation | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | Elasticity Modulus | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | Heat Shrinkage | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 70～80 | 78 | |||||
| 6 | Haze | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | Wetting Strength | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
4. Application Of PETG/PET Shrink Film

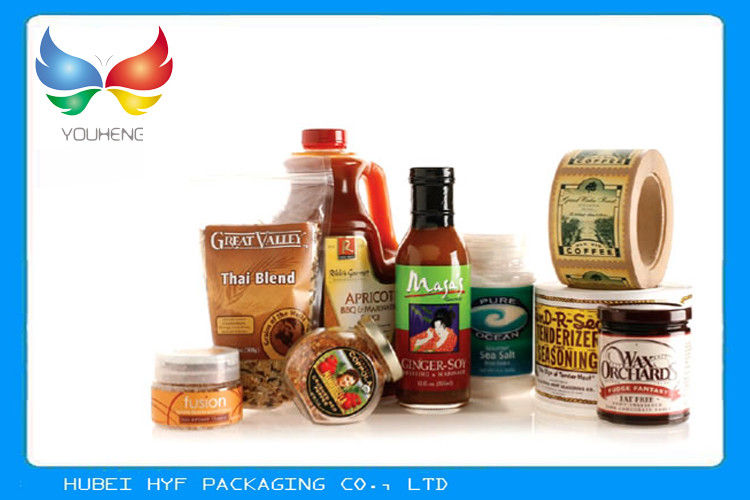

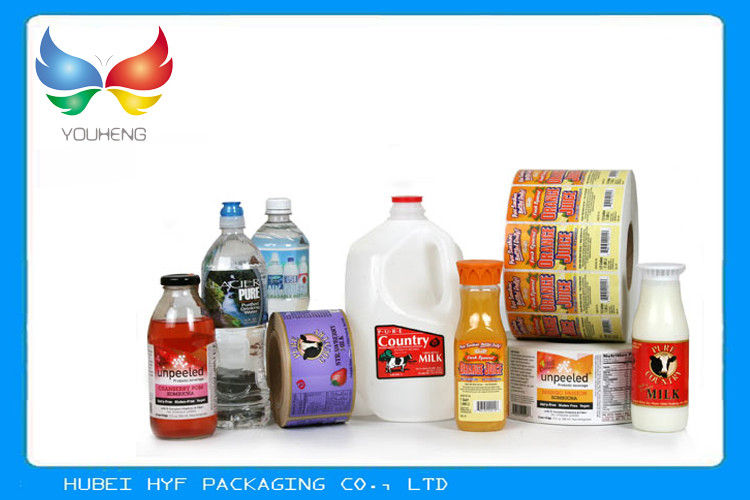

-Widely for all types of bottles, cups, trays printing

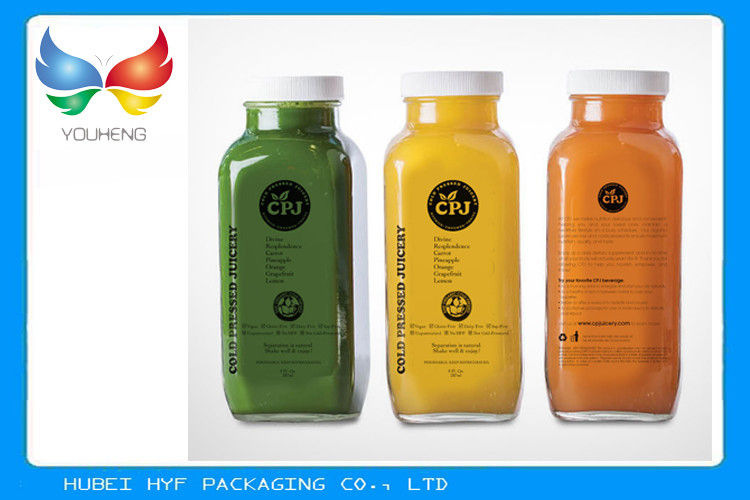

-Used for making full body sleeves and containers
5. Advantages Of PETG/PET Shrink Film
PETG is an amorphous plastic resign of the polyester family. Due to its high shrinkage, highest among all shrink sleeve material, PETG is an ideal solution for container shrink film that has complex geometries and required superior printability. Compared to other material, PETG resign is much more environmentally friendly making it a perfect solution for companies looking to switch from more harmful materials.
6. Package Of PETG/PET Shrink Film
7. Storage Of PETG/PET Shrink Film
Store our PETG shrink films below 30℃ in its original packaging;
Avoid damages from direct sunlight, high moisture and falling down.
Shelf life: 6 months.
8. Production Lines Of PETG/PET Shrink Film
9. FAQ
1) Can I have a sample order?
Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) What is the lead time?
Sample needs about 7 days prepared; mass production time needs 15-25 days normally.
3) Do you have any MOQ limit?
Our MOQ is 1 ton
SeaPort: FOB Shanghai
4) What information should I let you know if I want to get a quotation?
The external size of your products (Thick x Width x Length x Shrinkage) and the quantity.
Send your inquiry directly to us
