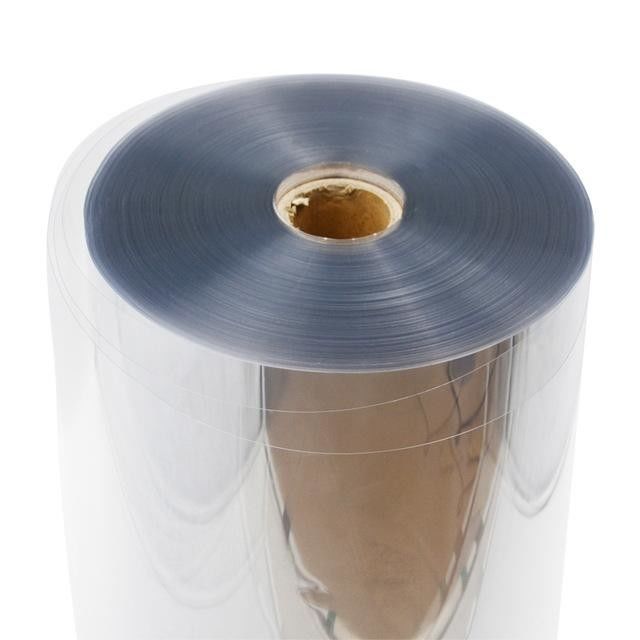

Bottles Cups PETG Shrink Sleeve High Shrinkage Properties

Bottles Cups PETG Shrink Sleeve High Shrinkage Properties
Bottles Cups PETG Shrink Sleeve High Shrinkage Properties

Large Image :  Bottles Cups PETG Shrink Sleeve High Shrinkage Properties

Product Details:
Place of Origin: China
Brand Name: HYF
Certification: ISO, SGS, etc.
Model Number: HYF
Payment & Shipping Terms:
Minimum Order Quantity: 1000KG
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 15-20 Work Day
Payment Terms: L/C, T/T, Western Union, PayPal
Supply Ability: 3000 Tons/Month
Detailed Product Description
Name: PETG Shrink Film Type: Shrink Film
Hardness: Soft Processing Type: Multiple Extrusion
Industrial Use: Label Printing Sample: Available
Transparency: Transparent Place Of Origin: Wuhan Hubei China
Certified: ISO SGS
High Light:

Cups PETG Shrink Sleeve


Bottles PETG Shrink Sleeve


PETG biodegradable shrink film


ISO SGS Multiple Extrusion Plastic Shrink Wrap Film Roll Environmental Protection



1. Product Details Of PETG Shrink Film


  • Medium to high shrinkage properties
  • Simple & multiple contours, symmetrical shaped configurations allow for flexibility in container shape and design
  • Suitable for gravure, flexographic & rotary offset printing
  • Runs on existing printing equipment using conventional inks
  • Works with heat-bar, solvent, hot-melt adhesive & laser seaming
  • Use in steam or hot air shrink tunnels
  • Excellent processability during printing & shrinking (smooth flat seams)
  • No de-lamination
  • High-impact strength
  • Gloss/gloss surface finish
  • Clear, transparent film


2. Product Specifications Of PETG Shrink Film


1) Thickness: 20mic - 80mic
2) Width: 450mm - 1200mm
3) Length: 2500m - 5000m
4) The shrinkage: 70% - 78%
5) Can provide free samples of 150m - 200m.


3. Product Parameter Of PETG Shrink Film


No Test Item UNIT Standard Test Result Decide
1 (Average thickness deviation) μm ±3 0 Qualified
2 Tensile Strength (MD) MPa ≥42 65.8 Qualified
(TD) MPa ≥142 231
3 Elongation (MD) % ≥300 591 Qualified
(TD) % ≥35 55
4 Elasticity Modulus (MD) MPa ≥1500 3269 Qualified
(TD) MPa ≥3000 7370
5 Heat Shrinkage (MD) % ≤5.0 2.3 Qualified
(TD) % 70~80 78
6 Haze % ≤7.0 2.2 Qualified
7 C.O.F (IN/OUT) dynamic friction coefficient / ≤0.50 0.47 Qualified
8 Wetting Strength mN/m ≥38 ≥38 Qualified
9 Density g/cm3 1.32±0.3 1.46 Qualified


4. Application Of PETG Shrink Film


-Widely for all types of bottles, cups, trays printing

-Used for making full body sleeves and containers


5. Package Of PETG Shrink Film

Multiple Extrusion Shrink Wrap Film Roll For Pack With PET Containers Or Bottles


6. Storage Of PETG Shrink Film


Store our PETG shrink films below 30℃ in its original packaging;

Avoid damages from direct sunlight, high moisture and falling down.

Shelf life: 6 months.
