Clear Cast Shrinkable PETG Shrink Film For Shrink Sleeve Labels

Clear Cast Shrinkable PETG Shrink Film For Shrink Sleeve Labels

Cast Shrinkable PETG Shrink Film

Clear PETG Shrink Film

Clear PETG Heat Shrink Film

Place of Origin:

China

Brand Name:

HYF

Certification:

ISO, SGS, etc.

Model Number:

HYF

Contact Us
Request A Quote
Product Details
Material:
PETG
Type:
Shrink Film
Usage:
Packaging Film
Industrial Use:
Label Printing
Sample:
Available
Transparency:
Transparent
Place Of Origin:
Wuhan Hubei China
Brand Name:
HYF
Certified:
ISO SGS
Name:
PETG Shrink Film
Feature:
Moisture Proof
Color:
Clear
MOQ:
2 Tons
Payment & Shipping Terms
Minimum Order Quantity
1000KG
Price
Negotiation
Packaging Details
Standard Export Package
Delivery Time
15-20 Work Day
Payment Terms
L/C, T/T, Western Union, PayPal
Supply Ability
3000 Tons/Month
Product Description

Clear Cast Shrinkable PETG Heat Shrink Film For Shrink Sleeve Labels





1. Product Details Of PETG Shrink Film



  • PETG – Offers the best scuff resistance, has highest percentage of shrink ability and easily recyclable. It’s also more stable and readily available. More customers are choosing PETG over PVC because it’s more readily available.
Product Name
PETG shrink film
Thickness
20-80micron
Width
350-2000mm
Outer Diameter
300-600mm
Core ID
3inch(76mm) or 6inch(152.4mm)


Features
* High tensile strength
* Smooth surface for printing
* Good printing receptivity
* Excellent shrink rates
* Good thermal stability
Tensile Strength
MD≥60Mpa
TD≥200Mpa
Elongation at Break
MD≥500%
TD≥40%
Density
≤1.32 kg/m3

2. Product Charaters Of PETG Shrink Film



  • Low shrink-initiation temperature requires minimal shrink tunnel length for energy savings & high-output line speed
  • Medium to high shrinkage properties
  • Simple & multiple contours, symmetrical shaped configurations allow for flexibility in container shape and design
  • Suitable for gravure, flexographic & rotary offset printing
  • Runs on existing printing equipment using conventional inks
  • Works with heat-bar, solvent, hot-melt adhesive & laser seaming
  • Use in steam or hot air shrink tunnels
  • Excellent processability during printing & shrinking (smooth flat seams)
  • No de-lamination
  • High-impact strength
  • Gloss/gloss surface finish
  • Clear, transparent film
  • Attractive total system cost due to high-speed labeling, low scrap rate, quick changeover, and wide-web printing



3. Product Parameter Of PETG Shrink Film



No Test Item UNIT Standard Test Result Decide
1 (Average thickness deviation) μm ±3 0 Qualified
2 Tensile Strength (MD) MPa ≥42 65.8 Qualified
(TD) MPa ≥142 231
3 Elongation (MD) % ≥300 591 Qualified
(TD) % ≥35 55
4 Elasticity Modulus (MD) MPa ≥1500 3269 Qualified
(TD) MPa ≥3000 7370
5 Heat Shrinkage (MD) % ≤5.0 2.3 Qualified
(TD) % 70~80 78
6 Haze % ≤7.0 2.2 Qualified
7 C.O.F (IN/OUT) dynamic friction coefficient / ≤0.50 0.47 Qualified
8 Wetting Strength mN/m ≥38 ≥38 Qualified
9 Density g/cm3 1.32±0.3 1.46 Qualified



4. Application Of PETG Shrink Film


1) Full or partial body shrink sleeves;
2) Full or partial body roll sleeves;
3) Tamper-evident band;
4) Wine capsules and disk plates;
5) Pressure-sensitive shrink labels;
6) Promotion combining pack



Clear Cast Shrinkable PETG Shrink Film For Shrink Sleeve Labels 0



5. Advantages Of PETG Shrink Film

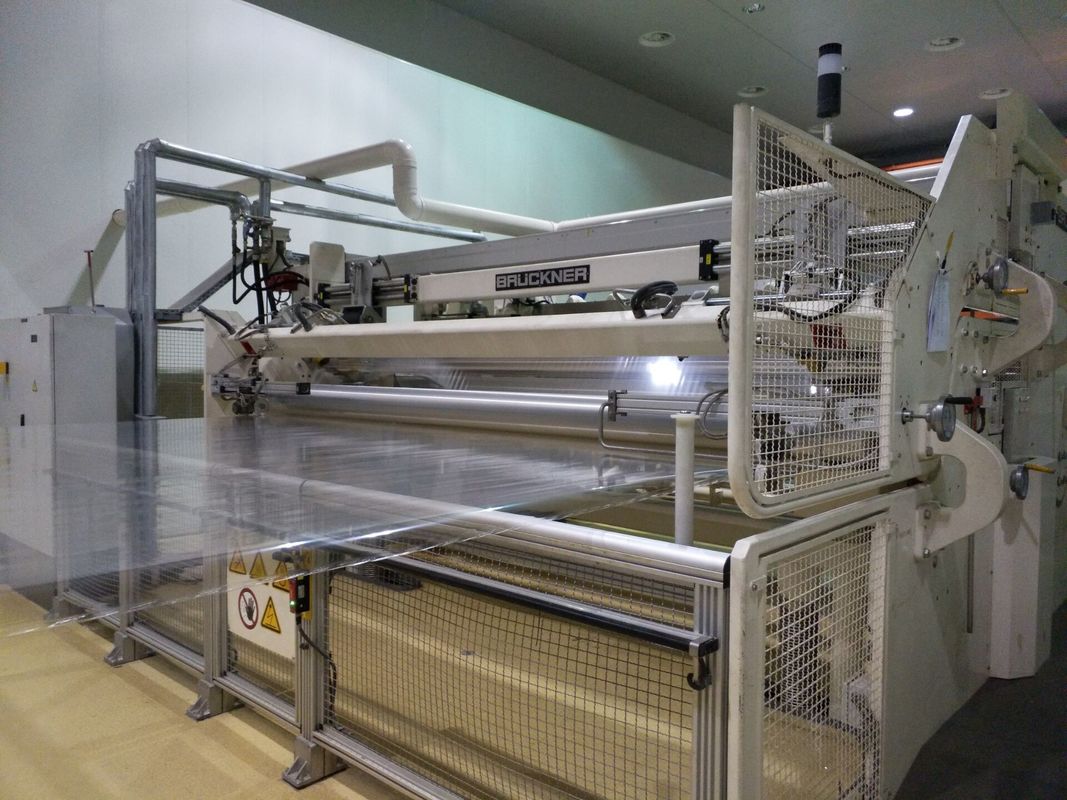

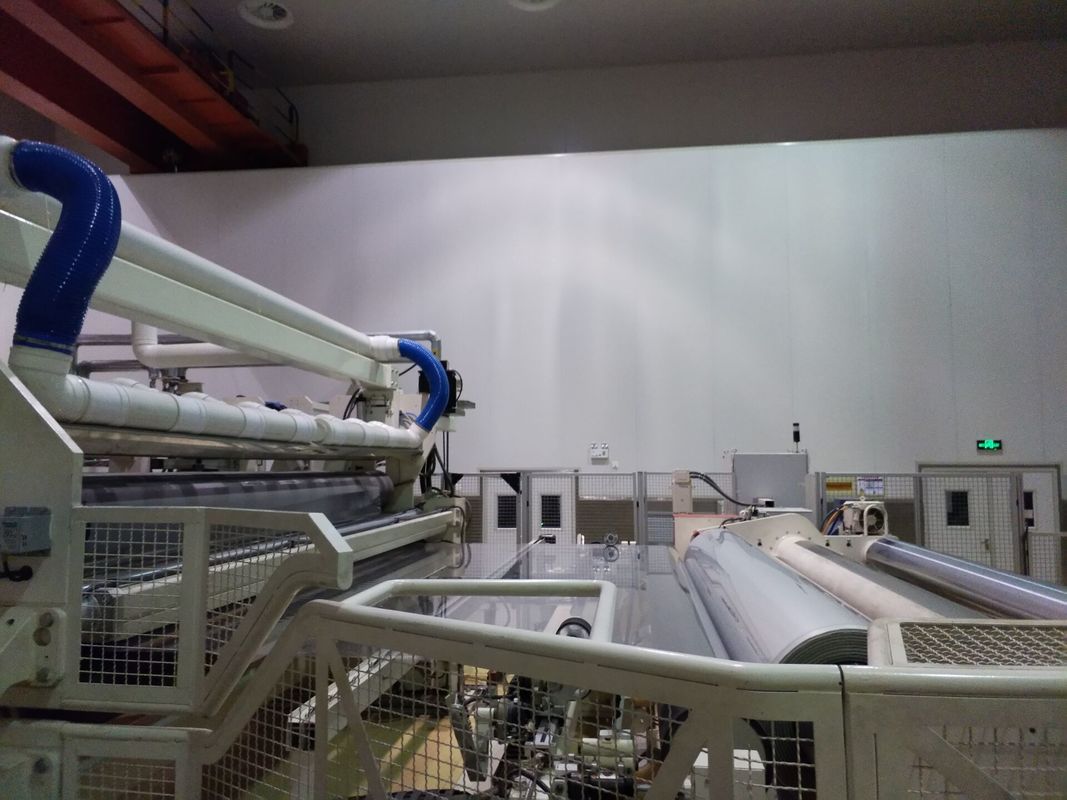

Our petg shrink film are produced in world class facility,even thickness,good surface tension,suitable for various printing machine.
Good performance in slitting, sealing and labeling processes.
Superb Stability at Room Temperature – These films will not shrink when stored.

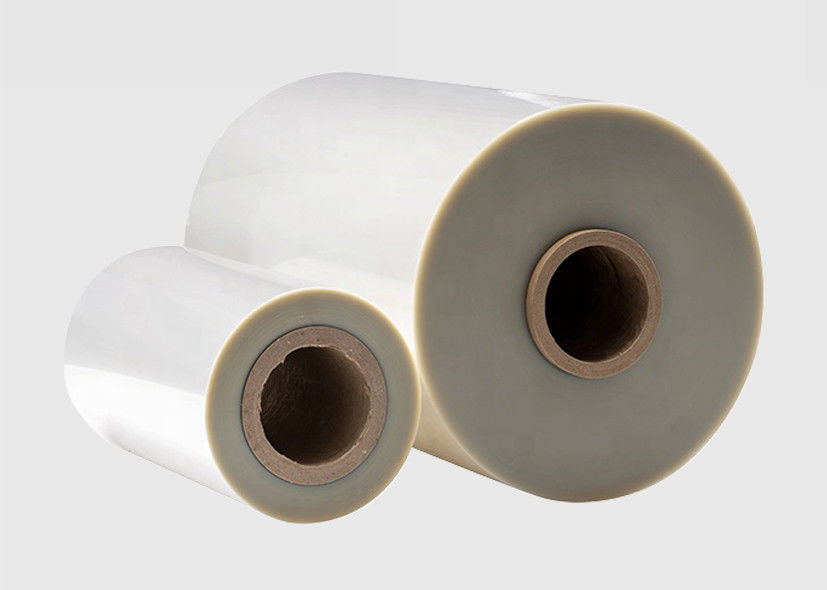

6. Package Of PETG Shrink Film



Clear Cast Shrinkable PETG Shrink Film For Shrink Sleeve Labels 1



7. Storage Of PETG Shrink Film



Store our PETG shrink films below 30℃ in its original packaging;

Avoid damages from direct sunlight, high moisture and falling down.

Shelf life: 6 months.



8. Loading Pictures Of PETG Shrink Film


Clear Cast Shrinkable PETG Shrink Film For Shrink Sleeve Labels 2Clear Cast Shrinkable PETG Shrink Film For Shrink Sleeve Labels 3



9. Our service Of PETG Shrink Film



1) professional technical team assuring good products quality
2) honest date and sincere communication looking for long-term cooperation
3) flexible and timely services providing high efficient work.
Green and environmental
Professional and perfect service
Brilliancy together



10. Supply Ability


Supply Ability:1000 Metric Ton/Metric Tons per Month



11. Packaging & Delivery


Packaging Details: Suspended Pallet Packing
Lead Time : About 7 - 15 days after confirmed the order

Port: Shanghai
