40-50mic PETG Shrinkable Film In Low Temperature For Shrink Package
1. Product Details Of PETG Shrink Film
POLYESTER(PETG) considered as a kind of ester film met friendly environment ,is mainly used to pack with PET containers or bottles,
provided that can cut down recycling cost.PETG shrink film is availabel for a variety of packaging types,sleeves,tamper evidence,
extruded roll stock,shrink bags or cap seal according to customers' size.
Many large companies are switching to the versatility and sustainability of PETG over PVC and OPS including Coca-Cola,Pepsi,Nestle,and Unilever,The benefits of PETG shrink film in the consumer markets have well received.
Excellent gauge and shrinkage uniformity. Good ink adhesion. Advanced machining properties.
2. Product Specifications Of PETG Shrink Film
1) Thickness: 35mic -50mic
2) Width: 450mm - 1200mm
3) Length: 2500m - 5000m
4) The shrinkage: 70% - 78%
5) Can provide free samples of 150m - 200m.
3. Product Parameter Of PETG Shrink Film
No | Test Item | UNIT | Standard | Test Result | Decide | |||
1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
2 | Tensile Strength | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
(TD) | MPa | ≥142 | 231 | |||||
3 | Elongation | (MD) | % | ≥300 | 591 | Qualified | ||
(TD) | % | ≥35 | 55 | |||||
4 | Elasticity Modulus | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
(TD) | MPa | ≥3000 | 7370 | |||||
5 | Heat Shrinkage | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
(TD) | % | 70~80 | 78 | |||||
6 | Haze | % | ≤7.0 | 2.2 | Qualified | |||
7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
8 | Wetting Strength | mN/m | ≥38 | ≥38 | Qualified | |||
9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified |
4. Application Of PETG Shrink Film
1) Full or partial body shrink sleeves;
2) Full or partial body roll sleeves;
3) Tamper-evident band;
4) Wine capsules and disk plates;
5) Pressure-sensitive shrink labels;
6) Promotion combining pack
5. Advantages Of PETG Shrink Film
Our petg shrink film are produced in world class facility,even thickness,good surface tension,suitable for various printing machine.
Good performance in slitting, sealing and labeling processes.
Superb Stability at Room Temperature – These films will not shrink when stored.

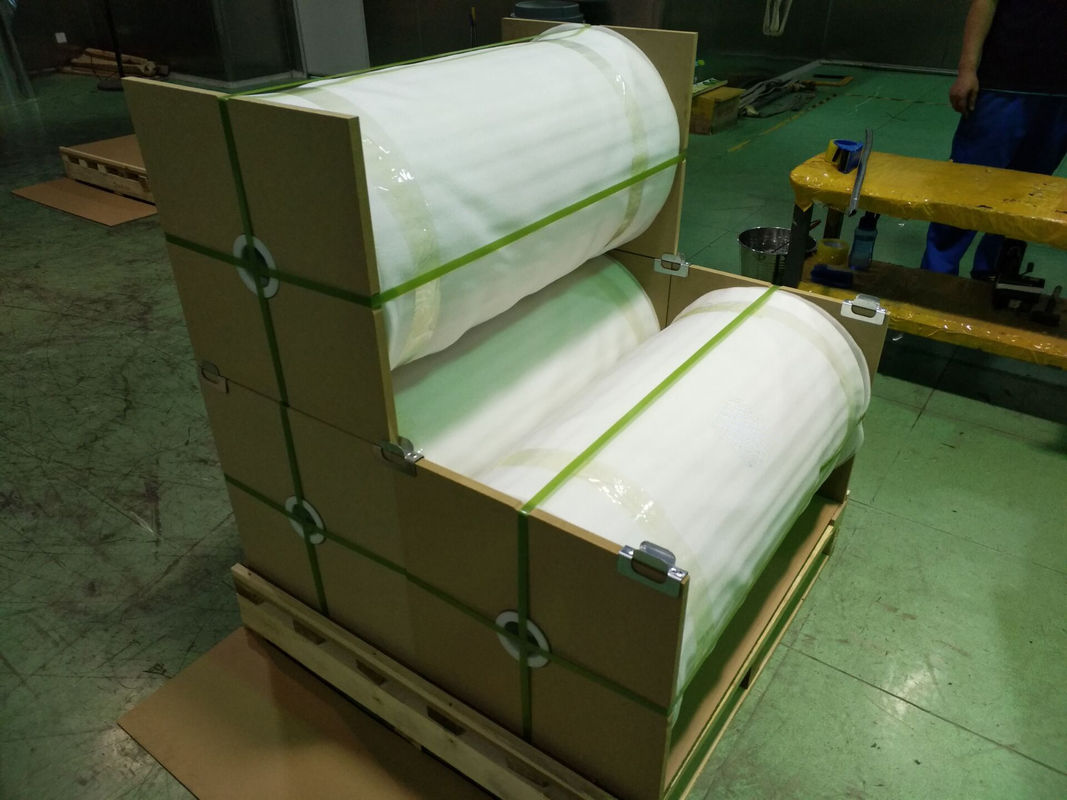

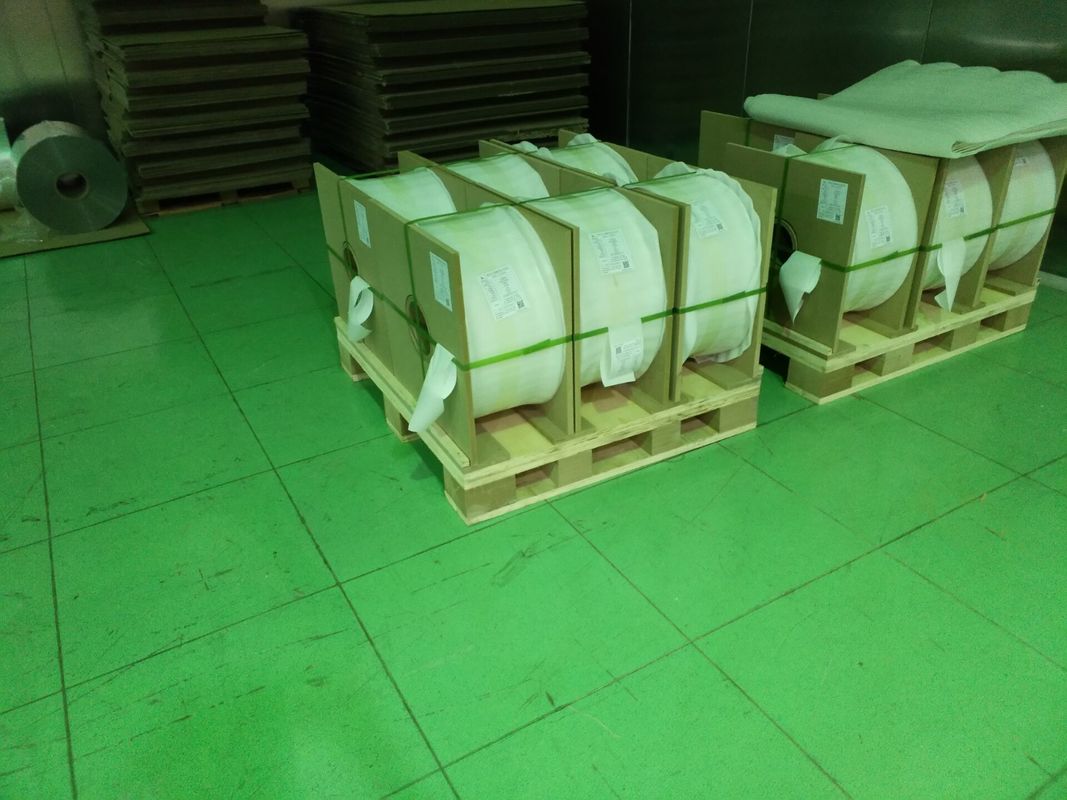

6. Package Of PETG Shrink Film
7. Storage Of PETG Shrink Film
PETG Heat shrinkable film is stored at below 30°C (86°F) with quality guarantee period of six
months in its original packaging; Avoid damages from direct sunlight, high moisture and falling down.
8. Production Lines Of PETG Shrink Film
9. Our service Of PETG Shrink Film
1) professional technical team assuring good products quality
2) honest date and sincere communication looking for long-term cooperation
3) flexible and timely services providing high efficient work.
Green and environmental
Professional and perfect service
Brilliancy together
10. Supply Ability
Supply Ability:1000 Metric Ton/Metric Tons per Month
11. Safety Information
Non-hazardous for air, sea and road freight.
Detailed safety information is contained in each Material Safety Data Sheet, which can be
obtained from our company.
12. Note
Information above is only for reference. Considering the difference between customers in terms
of equipment, process conditions, applications and specific requirements etc., we will be
responsible for the film property itself only instead of each using method and requirements from
different customers.
