Place of Origin:
China
Brand Name:
HYF
Certification:
ISO, SGS, etc.
Model Number:
HYF

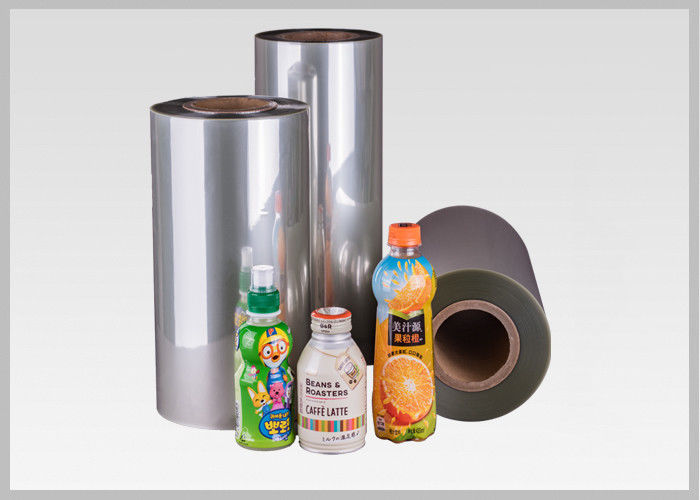

Transparent SGS PETG Heat Shrink Wrap Sleeve Film For Bottle Packaging
Supply Ability
Supply Ability:1000 Metric Ton/Metric Tons per Month
Packaging & Delivery
Packaging Details: Suspended Pallet Packing
Lead Time : About 7 - 15 days after confirmed the order
Port: Shanghai
1. Product Details Of PETG Shrink Film
While PETG is the most expensive and most heat resistant shrink sleeve material, they are the most scuff resistant, have a higher gloss, and also have a higher shrink percentage up to 75%. Additionally, PETG is pasteurisable, environmentally friendly and can be recycled, an often-sought feature in today's market.
2. Product Specifications Of PETG Shrink Film
1) Thickness: 20mic - 80mic
2) Width: 450mm - 1200mm
3) Length: 2500m - 5000m
4) The shrinkage: 70% - 78%
5) Can provide free samples of 150m - 200m.
3. Product Parameter Of PETG Shrink Film
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | Tensile Strength | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | Elongation | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | Elasticity Modulus | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | Heat Shrinkage | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 70～80 | 78 | |||||
| 6 | Haze | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | Wetting Strength | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
4. Application Of PETG Shrink Film
1) Full or partial body shrink sleeves;
2) Full or partial body roll sleeves;
3) Tamper-evident band;
4) Wine capsules and disk plates;
5) Pressure-sensitive shrink labels;
6) Promotion combining pack
5. Advantages Of PETG Shrink Film
1) ABC 3 layer coextrusion can achieve different functions of the film well.
2) Biaxial stretching can enrich the type and function of our products.
3) Online double side coating can achieve required surface property, which is convenient for downstream clients.
6. Package Of PETG Shrink Film
7. Storage Of PETG Shrink Film
Store our PETG shrink films below 30℃ in its original packaging;
Avoid damages from direct sunlight, high moisture and falling down.
Shelf life: 6 months.
8. Production Lines Of PETG Shrink Film
