Place of Origin:
China
Brand Name:
HYF
Certification:
ISO, SGS, etc.
Model Number:
HYF
Shrink PETG Plastic Film For Packaging , Heat Shrink Roll Certified SGS
Supply Ability
Supply Ability:1000 Metric Ton/Metric Tons per Month
Packaging & Delivery
Packaging Details: Suspended Pallet Packing
Lead Time : About 7 - 15 days after confirmed the order
Port: Shanghai

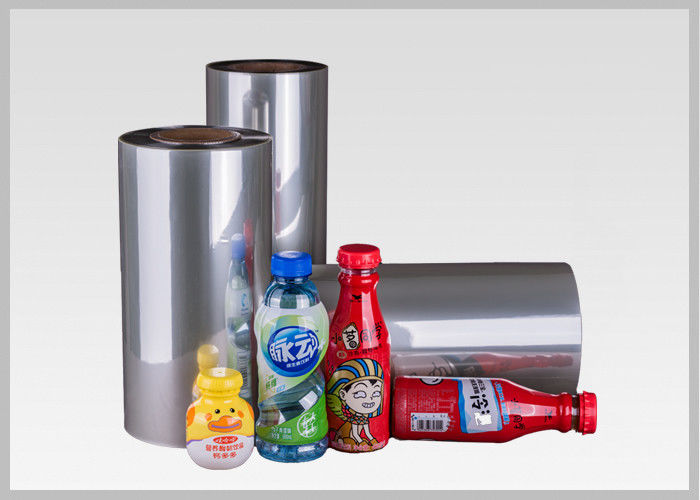

1. Product Details Of PETG Shrink Film
POLYESTER(PETG) considered as a kind of ester film met friendly environment ,is mainly
used to pack with PET containers or bottles ,provided that can cut down recycling
cost .PETG shrink film is availabel for a variety of packaging types ,sleeves ,tamper
evidence ,extruded roll stock ,shrink bags or cap seal according to customers' size.
Many large companies are switching to the versatility and sustainability of PETG over
PVC and OPS including Coca-Cola ,Pepsi ,Nestle ,and Unilever ,The benefits of PETG
shrink film in the consumer markets have well received.
2. Product Specifications Of PETG Shrink Film
1) Thickness: 20mic - 80mic
2) Width: 450mm - 1200mm
3) Length: 2500m - 5000m
4) The shrinkage: 70% - 78%
5) Can provide free samples of 150m - 200m.
3. Product Parameter Of PETG Shrink Film
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | Tensile Strength | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | Elongation | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | Elasticity Modulus | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | Heat Shrinkage | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 70～80 | 78 | |||||
| 6 | Haze | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | Wetting Strength | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
4. Application Of PETG Shrink Film
-Widely for all types of bottles, cups, trays printing
-Used for making full body sleeves and containers
5. Advantages Of PETG Shrink Film
"Slow shrink" behaviour
Very high shrinkage ratio (78%)
Excellent processing properties
Eco-compatible
Excellent transparency
6. Package Of PETG Shrink Film
7. Storage Of PETG Shrink Film
Store our PETG shrink films below 30℃ in its original packaging;
Avoid damages from direct sunlight, high moisture and falling down.
Shelf life: 6 months.
8. Production Lines Of PETG Shrink Film
9. FAQ Of PETG Shrink Film
1) Can I have a sample order?
Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) What is the lead time?
Sample needs about 7 days prepared; mass production time needs 15-25 days normally.
3) Do you have any MOQ limit?
Our MOQ is 1 ton
SeaPort: FOB Shanghai
4) What information should I let you know if I want to get a quotation?
The external size of your products (Thick x Width x Length x Shrinkage) and the quantity.
Send your inquiry directly to us
