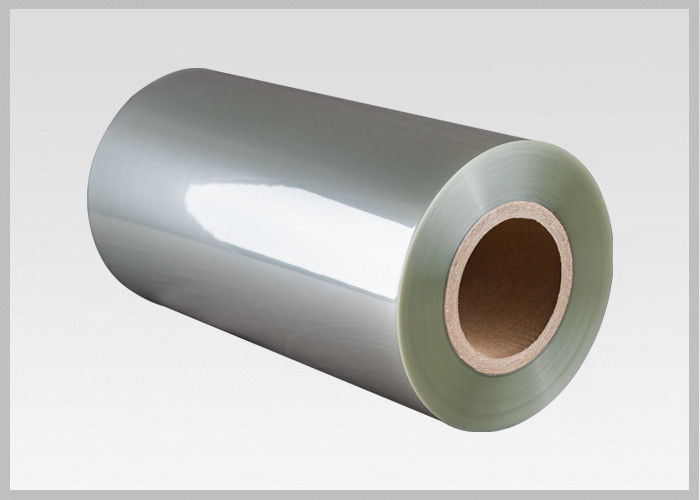

Transparent PETG Shrink Film Shrink Wrap Material With High - Impact Strength
Supply Ability
Supply Ability:1000 Metric Ton/Metric Tons per Month
Packaging & Delivery
Packaging Details: Suspended Pallet Packing
Lead Time : About 7 - 15 days after confirmed the order
Port: Shanghai
1. Product Details Of PETG Shrink Film
PET/PETG Shrink Films - is the Label Film printing material which is widely used for wrap full of the bottle with the feature of high tensile strenth,good flatness and fit for wide printing,perfect printing performance for shallow network printing Even and high shrinkage and excellent thermal shrinking stability. Widely used for bottle (big diameter difference between bottleneck and body) film labelling, eg.beverage bottles packaging , cleaning and bathing products packaging and cosmetics packaging.
In HYF, we have our own line, mainly producing PET(G) heat shrink films for sleeve labels. Our line is 5 meters wide, specially designed for the production of PET heat shrink films with our own technical.
2. Product Specifications Of PETG Shrink Film
1) Thickness: 20mic - 80mic
2) Width: 450mm - 1200mm
3) Length: 2500m - 5000m
4) The shrinkage: 70% - 78%
5) Can provide free samples of 150m - 200m.
3. Product Parameter Of PETG Shrink Film
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | Tensile Strength | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | Elongation | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | Elasticity Modulus | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | Heat Shrinkage | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 70～80 | 78 | |||||
| 6 | Haze | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | Wetting Strength | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
4. Application Of PETG Shrink Film
-Widely for all types of bottles, cups, trays printing
-Used for making full body sleeves and containers
5. Advantages Of PETG Shrink Film
"Slow shrink" behaviour
Very high shrinkage ratio (78%)
Excellent processing properties
Eco-compatible
Excellent transparency
6. Package Of PETG Shrink Film
7. Storage Of PETG Shrink Film
Store our PETG shrink films below 30℃ in its original packaging;
Avoid damages from direct sunlight, high moisture and falling down.
Shelf life: 6 months.
8. Production Lines Of PETG Shrink Film
HYF Team Welcomes You!
HYF PACKAGING brings relevant professional top talent and technology together for a highly qualified professional team. We have R&D Dep., QC Dep., After-sale service Dep., Production Dep., and Sale Dep., as the expansion of our business, we welcome more friends.
