Place of Origin:
China
Brand Name:
HYF
Certification:
ISO, SGS, etc.
Model Number:
HYF
Clear Recycled PETG Shrink Film ISO / SGS Certified With High Shrinkage
Supply Ability
Supply Ability:1000 Metric Ton/Metric Tons per Month
Packaging & Delivery
Packaging Details: Suspended Pallet Packing
Lead Time : About 7 - 15 days after confirmed the order
Port: Shanghai

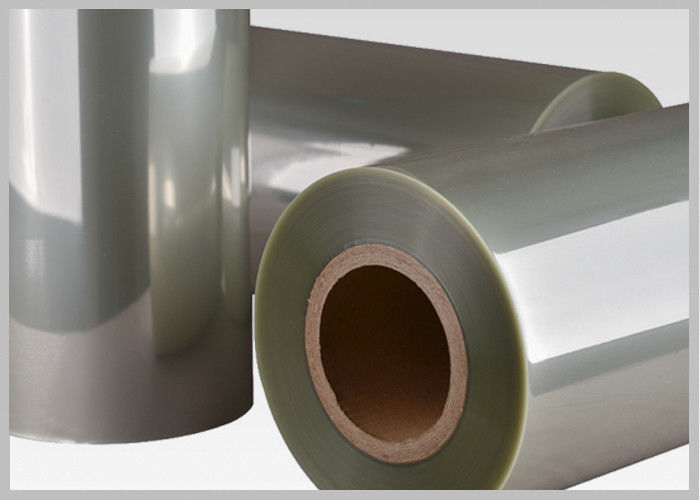

1. Product Details Of PETG Shrink Film
PETg (polyethylene terephtalate glycol) is a film with a high strength ratio and excellent clarity. While PET is the most heat resistant shrink sleeve material, it is the most scuff resistant, has an higher gloss, and also has an high shrink percentage. Additionally, it can be recycled.
2. Product Specifications Of PETG Shrink Film
1) Thickness: 20mic - 80mic
2) Width: 450mm - 1200mm
3) Length: 2500m - 5000m
4) The shrinkage: 70% - 78%
5) Can provide free samples of 150m - 200m.
3. Product Parameter Of PETG Shrink Film
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | Tensile Strength | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | Elongation | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | Elasticity Modulus | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | Heat Shrinkage | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 70～80 | 78 | |||||
| 6 | Haze | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | Wetting Strength | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
4. Application Of PETG Shrink Film
-Widely for all types of bottles, cups, trays printing
-Used for making full body sleeves and containers
5. Advantages Of PETG Shrink Film
1) Excellent printability
Reverse prints with stunning clarity, gloss and presence.
Surface printed with existing technology and without special pretreatment.
2) All-encompassing design
Ability to wrap around container with 360 degree graphics
Front or reverse surface printing brings out the best in colors and graphic design
3) Crystal Clarity
Water-like clarity showcases colors and graphics
4) High shrink rate
Flushes beautifully against complex contoured surfaces and tight fit remains over time.
Reaches maximum shrinkage potential more quickly than competitive products(up to 80% ultimate shrinkage)
Higher shrinkage reached at lower temperatures-great for heat sensitive products
5) Halogen-free*
Unlike PVC, It is Halogen-free shrink film material.
6) Machine runnability
High tensile strength
Low coefficient of friction
7) Lower carbon foot print
Recycled with PET bottles
Halogen free unlike PVC
Reefer container not required unlike OPS.
6. Package Of PETG Shrink Film
7. Storage Of PETG Shrink Film
Store our PETG shrink films below 30℃ in its original packaging;
Avoid damages from direct sunlight, high moisture and falling down.
Shelf life: 6 months.
8. Production Lines Of PETG Shrink Film
9. FAQ Of PETG Shrink Film
1) Can I have a sample order?
Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) What is the lead time?
Sample needs about 7 days prepared; mass production time needs 15-25 days normally.
3) Do you have any MOQ limit?
Our MOQ is 1 ton
SeaPort: FOB Shanghai
4) What information should I let you know if I want to get a quotation?
The external size of your products (Thick x Width x Length x Shrinkage) and the quantity.
