Product Details:
Payment & Shipping Terms:
|
| Name: | Petg Packaging Film | Type: | Stretch Film |
|---|---|---|---|
| Thickness: | 30-50mic | Feature: | High Impact Strength |
| Core Size: | 3" Or 6" | Shrinkage: | 70%-78% |
| High Light: | poly shrink film,silicone coated film |
||

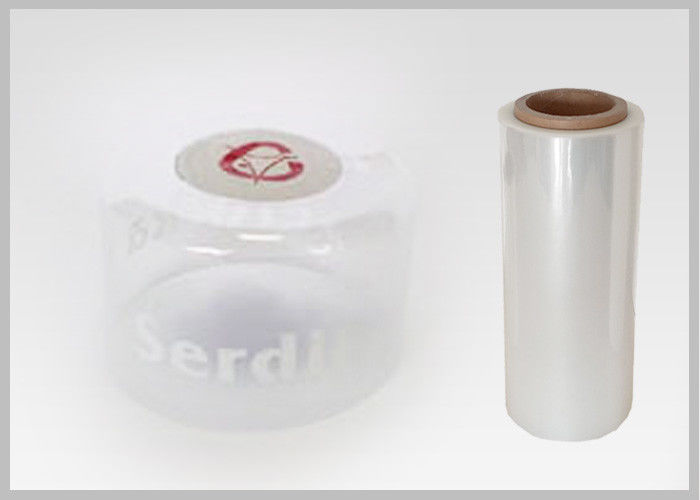

High Impact Strength Petg Packaging Film / Clear Pvc Shrink Sleeve
Petg Packaging Film Introduction
1. most environmentally friendly material
2. Wide usage
3. Good flexible & soft
4. FDA,RoHS,REACH standard
Petg Packaging Film Parameter
| Item | Unit | Typical Value | Testing Method | |||
| Thickness | mic | 40, 45, 50, 60 | ASTM D374 | |||
| Thickness Tolerance | % | ±3 | ||||
| Material Yield | m²/kg | － | ||||
| 40mic | 18.9 | |||||
| 45mic | 16.8 | |||||
| 50mic | 15.2 | |||||
| 60mic | 12.6 | |||||
| Tensile Strength | MD | Mpa | 50 | ASTM D882 v=100mm/min |
||
| TD | 240 | |||||
| E-Modulus | MD | 1900 | ||||
| TD | 4300 | |||||
| Elogation At Break | MD | % | 430 | |||
| TD | 39 | |||||
| Heat Shrinkage | MD | % | 1 | ASTM D 1204 90℃/10Sec/Water |
||
| TD | 65 | |||||
| C.O.F | us | － | 0.485 | ASTM D1894 E | ||
| uk | 0.43 | |||||
| Haze | % | 3.65 | ASTM D1003 | |||
| Gloss(45°) | － | 110 | ASTM D2457 | |||
| Dyne | mN/m | 40 | ASTM D2578 | |||
| Density | g/cm³ | 1.32 | ASTM D792 | |||
Petg Packaging Film Specifications
1) Thickness: 30mic - 50mic (other thickness also can do according the MOQ)
2) Width: 350mm - 1200mm
3) Length: 3000m - 6000m
4) Core size: 3" and 6"
5) The shrinkage:
Lower shrinkage: 50-60%
Middel shrinkage: 60-70%
High shrinkage: 70-78%
6) Can provide free samples of 150m - 200m.
Petg Packaging Film Parameters
Storage
1) Stored in the warehouse with the temperature below 23℃, In summer putting on airconditioning or other solution to cool down.
2) Please try to use up film within 3 months while they are at the perfect condition in 3 months.
