Product Details:
Payment & Shipping Terms:
|
| Material: | PETG | Origin Of Place: | WuHan |
|---|---|---|---|
| Thickness: | 20-80Mic | Width: | 150-1000mm |
| Transparency: | Transparent | Length: | 2500-5000mm |
| High Light: | silicone coated film,plastic shrink film |
||

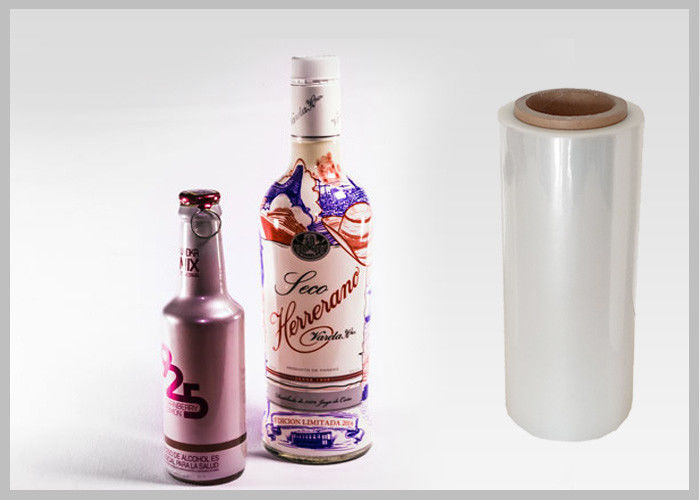

20mic - 80mic PETG Shrink Film For Sleeves , Tamper Evidence , Extruded Roll Stock
PETG Shrink Film Details:
POLYESTER(PETG) considered as a kind of ester film met friendly environment is mainly used to pack with PET containers or bottles, it can cut down recycling cost. PETG shrink film is available for a variety of packaging types, sleeves, tamper evidence, extruded roll stock, shrink bags or cap seal according to customers' size.
PETG Shrink Film Specifications:
1. Thickness: 20mic - 80mic
2. Width: 150mm - 1000 mm
3. Length: 2500m - 5000m
4. The shrinkage: 60% - 70%
5. Can provide free samples of 150m - 200m.
PETG Shrink Film Parameter:
| No | Test Item | UNIT | Standard | Test Result | Decide | |||
| 1 | (Average thickness deviation) | μm | ±3 | 0 | Qualified | |||
| 2 | TENSILE STRENGTH | (MD) | MPa | ≥42 | 65.8 | Qualified | ||
| (TD) | MPa | ≥142 | 231 | |||||
| 3 | ELONGATION | (MD) | % | ≥300 | 591 | Qualified | ||
| (TD) | % | ≥35 | 55 | |||||
| 4 | (Elasticity Modulus) | (MD) | MPa | ≥1500 | 3269 | Qualified | ||
| (TD) | MPa | ≥3000 | 7370 | |||||
| 5 | HEAT SHRINKAGE | (MD) | % | ≤5.0 | 2.3 | Qualified | ||
| (TD) | % | 60～70 | 66 | |||||
| 6 | (HAZE) | % | ≤7.0 | 2.2 | Qualified | |||
| 7 | C.O.F | (IN/OUT) | dynamic friction coefficient | / | ≤0.50 | 0.47 | Qualified | |
| 8 | WETTING TENSION | mN/m | ≥38 | ≥38 | Qualified | |||
| 9 | Density | g/cm3 | 1.32±0.3 | 1.46 | Qualified | |||
PETG Shrink Film Application:
1. Widely for all types of bottles, cups, trays printing;
2. Used for making full body sleeves and containers;
Storage:
1. The film are suggested to be stored in the warehouse with temperature below 23℃, if in hot
season, putting on airconditioning or other solution to cool down the warehouse shoud be taken.
2. The film storage period is 3 months. Please try to use up film within 3 months while they are at perfect
conditon.
Attention:
1. Over the sea: The films are suggested to be shipped with reefer container. If less than container
loading, anti-heat material is advised to be used for packing to protect the films.
2. Container over the land: The truck with electronic power should be used for moving the container
between port and factory to keep the reefer container working.
