40-50mic PETG Shrinkable Film In Low Temperature For Shrink Package
1. Product Details Of PETG Shrink Film
PETG shrink film is combining high overall shrinkage and excellent printability.
The favorable film toughness and shrinkage character combine to make a film suitable for a wide variety of container shapes.
The film thickness is from 35-50mic, Shrinkage from 70-78%.
Providing full or partial body coverage, roll-sleeve films are formulated to work on roll-fed label machinery. So you get the superior graphics of shrink-label films and the high efficiency production of roll-fed labels.
- Low shrink-initiation temperature requires minimal shrink tunnel length for energy savings & high-output line speed
- Medium to high shrinkage properties
- Simple & multiple contours, symmetrical shaped configurations allow for flexibility in container shape and design
- Suitable for gravure, flexographic & rotary offset printing
- Runs on existing printing equipment using conventional inks
- Works with heat-bar, solvent, hot-melt adhesive & laser seaming
- Use in steam or hot air shrink tunnels
- Excellent processability during printing & shrinking (smooth flat seams)
- No de-lamination
- High-impact strength
- Gloss/gloss surface finish
- Clear, transparent film
- Attractive total system cost due to high-speed labeling, low scrap rate, quick changeover, and wide-web printing
2. Product Specifications Of PETG Shrink Film
1) Thickness: 35mic -50mic
2) Width: 450mm - 1200mm
3) Length: 2500m - 5000m
4) The shrinkage: 70% - 78%
5) Can provide free samples of 150m - 200m.
3. Product Parameter Of PETG Shrink Film
| No |
Test Item |
UNIT |
Standard |
Test Result |
Decide |
| 1 |
(Average thickness deviation) |
μm |
±3 |
0 |
Qualified |
| 2 |
Tensile Strength |
(MD) |
MPa |
≥42 |
65.8 |
Qualified |
| (TD) |
MPa |
≥142 |
231 |
| 3 |
Elongation |
(MD) |
% |
≥300 |
591 |
Qualified |
| (TD) |
% |
≥35 |
55 |
| 4 |
Elasticity Modulus |
(MD) |
MPa |
≥1500 |
3269 |
Qualified |
| (TD) |
MPa |
≥3000 |
7370 |
| 5 |
Heat Shrinkage |
(MD) |
% |
≤5.0 |
2.3 |
Qualified |
| (TD) |
% |
70～80 |
78 |
| 6 |
Haze |
% |
≤7.0 |
2.2 |
Qualified |
| 7 |
C.O.F |
(IN/OUT) |
dynamic friction coefficient |
/ |
≤0.50 |
0.47 |
Qualified |
| 8 |
Wetting Strength |
mN/m |
≥38 |
≥38 |
Qualified |
| 9 |
Density |
g/cm3 |
1.32±0.3 |
1.46 |
Qualified |
4. Application Of PETG Shrink Film
1) Full or partial body shrink sleeves;
2) Full or partial body roll sleeves;
3) Tamper-evident band;
4) Wine capsules and disk plates;
5) Pressure-sensitive shrink labels;
6) Promotion combining pack
5. Advantages Of PETG Shrink Film
Our petg shrink film are produced in world class facility,even thickness,good surface tension,suitable for various printing machine.
Good performance in slitting, sealing and labeling processes.
Superb Stability at Room Temperature – These films will not shrink when stored.
6. Package Of PETG Shrink Film
7. Storage Of PETG Shrink Film
Store our PETG shrink films below 30℃ in its original packaging;
Avoid damages from direct sunlight, high moisture and falling down.
Shelf life: 6 months.

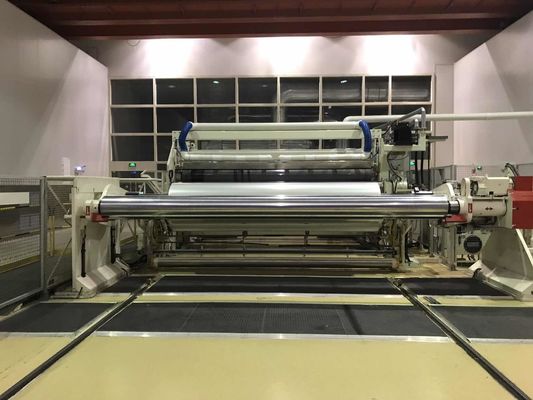

8. Production Lines Of PETG Shrink Film
9. Our service Of PETG Shrink Film
1) professional technical team assuring good products quality
2) honest date and sincere communication looking for long-term cooperation
3) flexible and timely services providing high efficient work.
Green and environmental
Professional and perfect service
Brilliancy together
10. Supply Ability
Supply Ability:1000 Metric Ton/Metric Tons per Month
11. Packaging & Delivery
Packaging Details: Suspended Pallet Packing
Lead Time : About 7 - 15 days after confirmed the order
Port: Shanghai
