50MIC RON PVC Heat Shrink Film For Reverse Printed Shrinkable Labels

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  50MIC RON PVC Heat Shrink Film For Reverse Printed Shrinkable Labels

Product Details:
Place of Origin: China
Brand Name: HYF
Certification: ISO, SGS, etc.
Model Number: HYF
Payment & Shipping Terms:
Minimum Order Quantity: 1000kgs
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 10-20 work days
Payment Terms: L/C, T/T, Western Union, PayPal
Supply Ability: 200 Metric Tons
Detailed Product Description
Material: PVC Thickness: 50mic
Width: 350mm-1000mm Length: 4000m
Color: Transparent Application: Reverse Printed Shrinkable Labels
High Light:

shrink wrap tube film

,

pvc shrink film rolls

50MICRON PVC Heat-shrink Plastic Film For Reverse Printed Shrinkable Labels



Shrink Films entails placing a pre-printed plastic sleeve onto a container and then applying heat to the plastic film (typically thickness of 40 - 60 microns) so that the film shrinks to the shape of the bottle. The technology of shrink sleeving has been around for over forty years and has come a long way since then; mainly due to the innovative properties of modern day plastic film.



1. Product Specifications



1) Thickness: 35mic, 40mic, 45mic, 50mic
2) Width: 350mm - 1000mm
3) Length: 1000m - 3000m
4) The shrinkage: 45% - 53%
5) Can provide free samples of 150m - 200m.


2. Technical Data Sheet



NO. Properties Unit Test Standard Test Method
1 Width mm (Order Sheet standard)0-3 ---
2 Thickness Max tolerance % ±12% ASTM D 374
3 Tensile Strength MD N/mm2 ≥42 ASTM D 882
TD N/mm2 ≥50 ASTM D 882
4 Elongation at Break MD % ≥70 ASTM D 882
TD % ≥50 ASTM D 882
5 Shrinkage MD % Order Sheet standard±2.5 ASTM D 1204
(100°C,8 Seconds) TD % Order Sheet standard ±2.5 ASTM D 1204
6 Friction Coefficient --- ≤0.5 ASTM D 1894E


3. Features

1) Totally dust free.
2) Excellent printability.
3) Strong & flexible films.
4) Excellent dimensional stability.
5) Perfect machine-ability even with high speed machines.
6) Uniform & Consistent Shrink Properties to enable
360 degree graphics suitable for printed sleeves/labels.
7) Films designed for Full-body sleeve labels, Promotion packs, Multi-packs & Tamper-evident closures.
8) Suitable for Manual, Poll-fed & Shrink wrap-around labels.

4. Advantages

1) High clarity.
2) Excellent shrinkage control.
3) Very good lay-flat properties.
4) Excellent product presentation.
5)
The low heat required during packing.
6) Good shrinking using small or big heat tunnel.


4. Usage

1) For full-body sleeves, shrink sleeves and tamper-evident bands.
2) For
wrap-around, pressure-sensitive, and roll-on shrink on labels.
3) For shrink-wrap multi-packs packaging.
4) Custom made available for PVC Bag, PVC Roll, PVC Sheet & PVC Tubing.

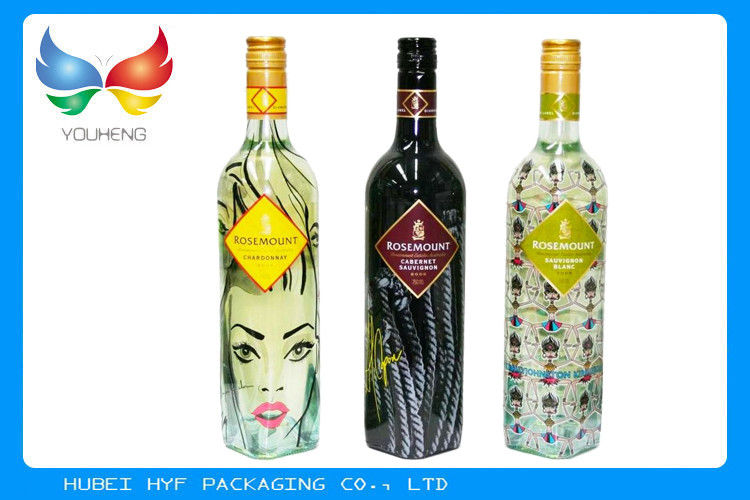

50MIC RON PVC Heat Shrink Film For Reverse Printed Shrinkable Labels 0

5. Package Of PVC Shrink Film

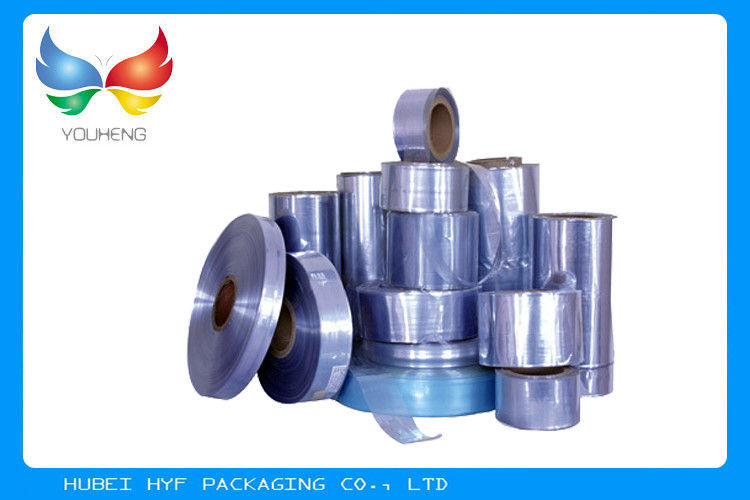

50MIC RON PVC Heat Shrink Film For Reverse Printed Shrinkable Labels 1


6. Production Lines

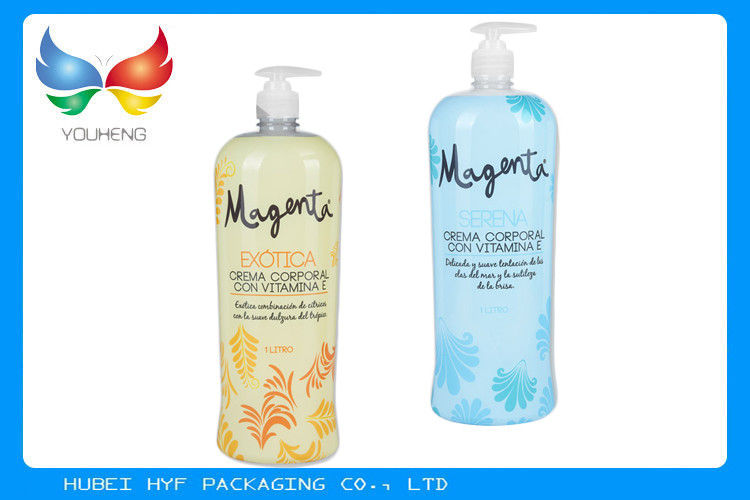

50MIC RON PVC Heat Shrink Film For Reverse Printed Shrinkable Labels 2
7. FAQ



1) What is your MOQ?
--- Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.

2) Can you offer free sample?
--- Yes, we can provide free samples of 150m - 200m.

3) What is your delivery time?
--- We will deliver in 15-20 work days

4) Can you accept mixed products in one container?
--- Yes, we accept for sure.
